FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Chrysler
>>
2007
>>
Pacifica V6-4.0L VIN X
>>
Repair and Diagnosis
>>
Steering and Suspension
>>
Alignment
>>
Testing and Inspection
>>
Diagnosis and Testing - Suspension and Steering
Diagnosis and Testing - Suspension and Steering
SUSPENSION AND STEERING

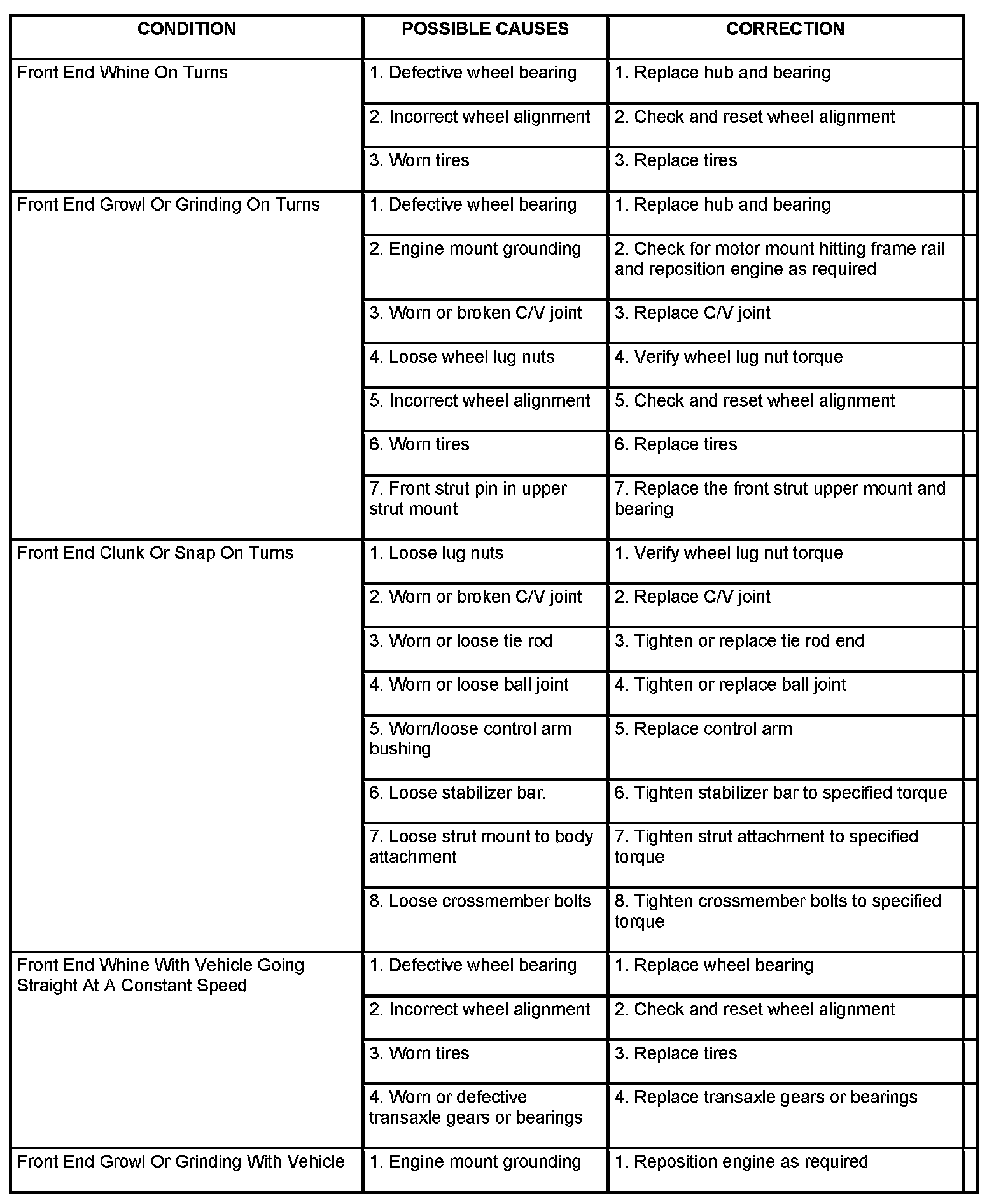

SUSPENSION AND STEERING (Part 1):

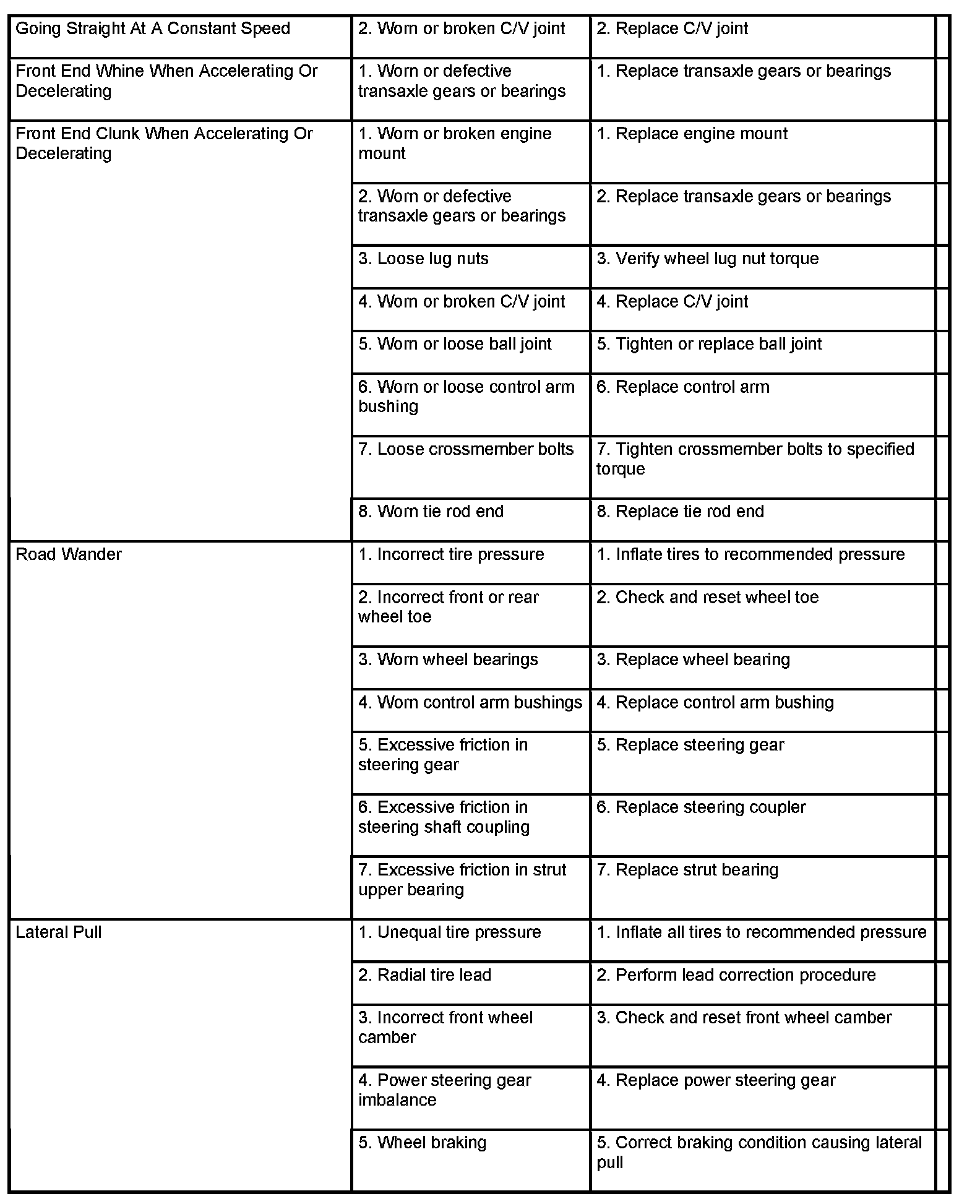

SUSPENSION AND STEERING (Part 2):
SUSPENSION AND STEERING (Part 3):
