Circuit Breaker: Diagrams

Component ID: 58

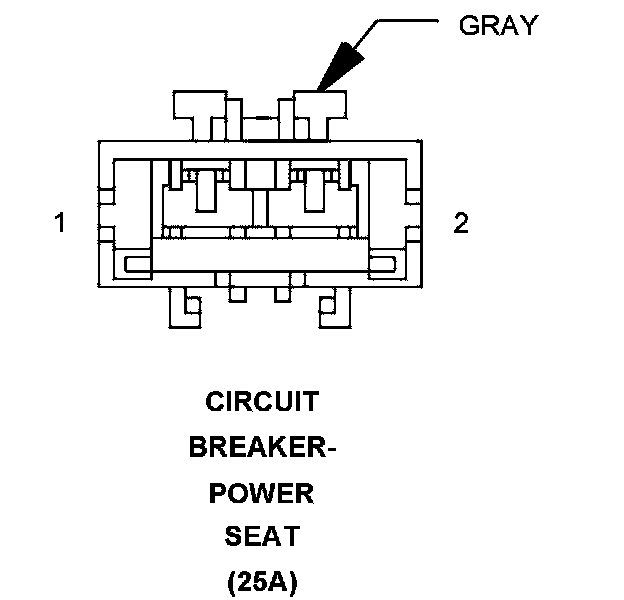

Component : CIRCUIT BREAKER-POWER SEAT

Connector:
Name : CIRCUIT BREAKER-POWER SEAT
Color : GRAY
# of pins : 2
Qualifier : (25A)




Pin Description Circuit
1 FUSED B(+) A110 12DG/RD
2 FUSED B(+) A210 14OR/RD

Component Location - 18
