Connecting Rod, Engine

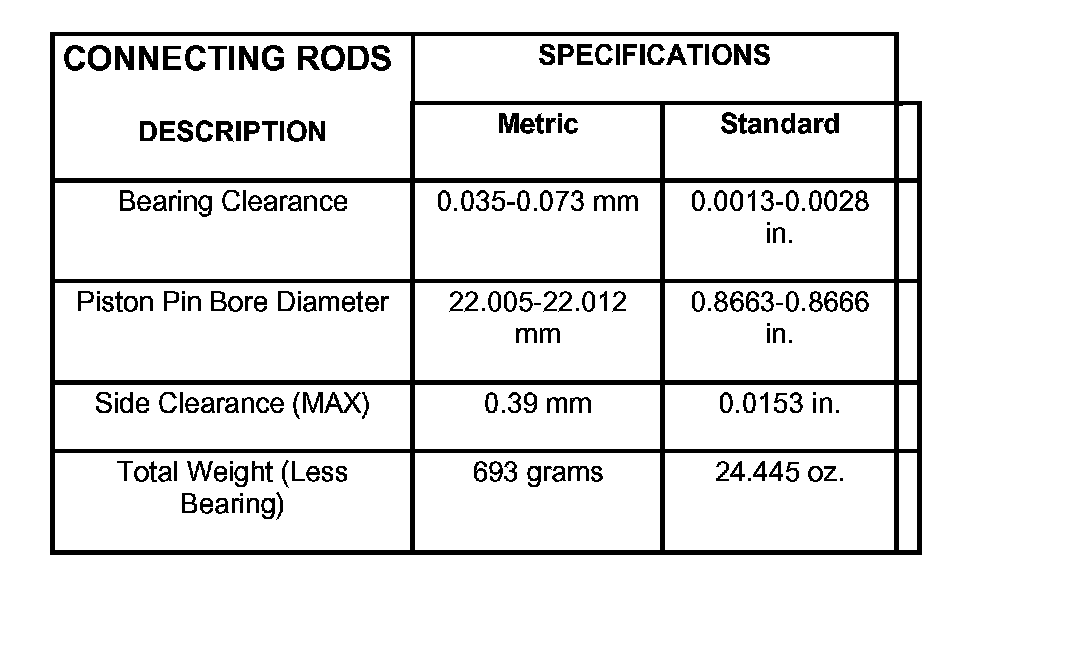

Connecting Rods:





Connecting Rods

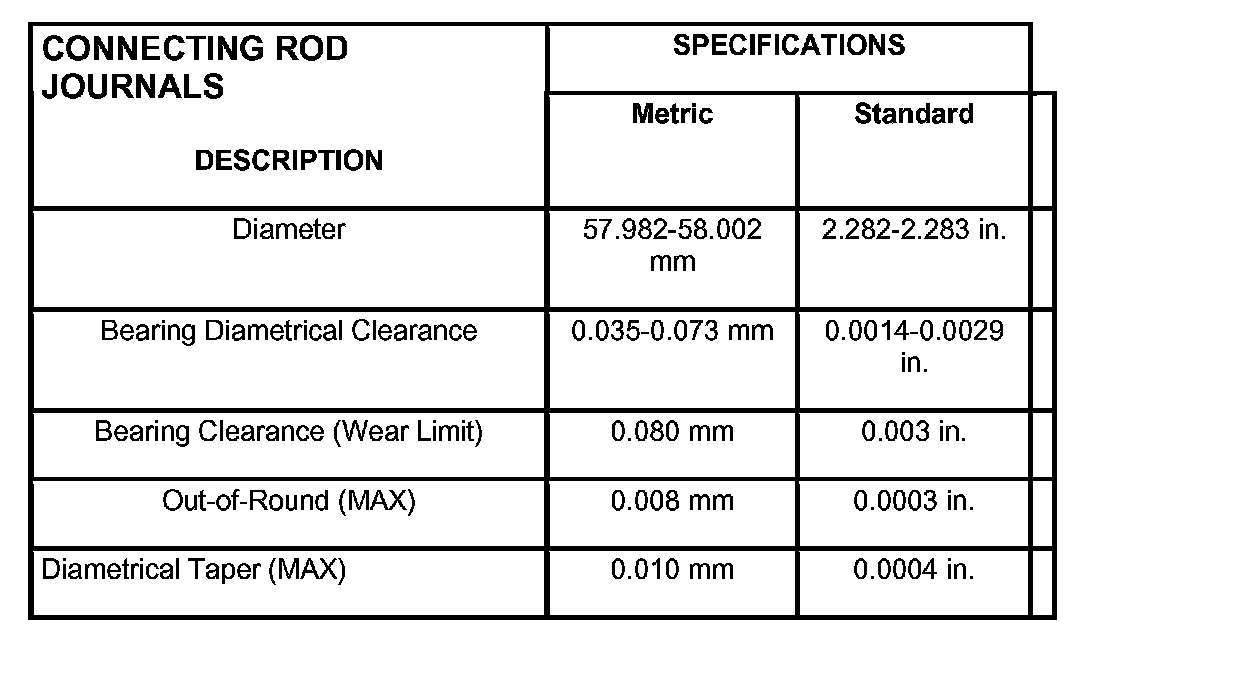

Connecting Rod Journals:





Connecting Rod Journals

CONNECTING ROD CAP BOLTS
Tighten To 27 Nm +1/4 turn (20 Ft. Lbs. +1/4 turn)
