Home >> Chrysler >> 2007 >> Pacifica V6-4.0L VIN X >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Body and Frame >> System Specifications >> Frame and Bumpers

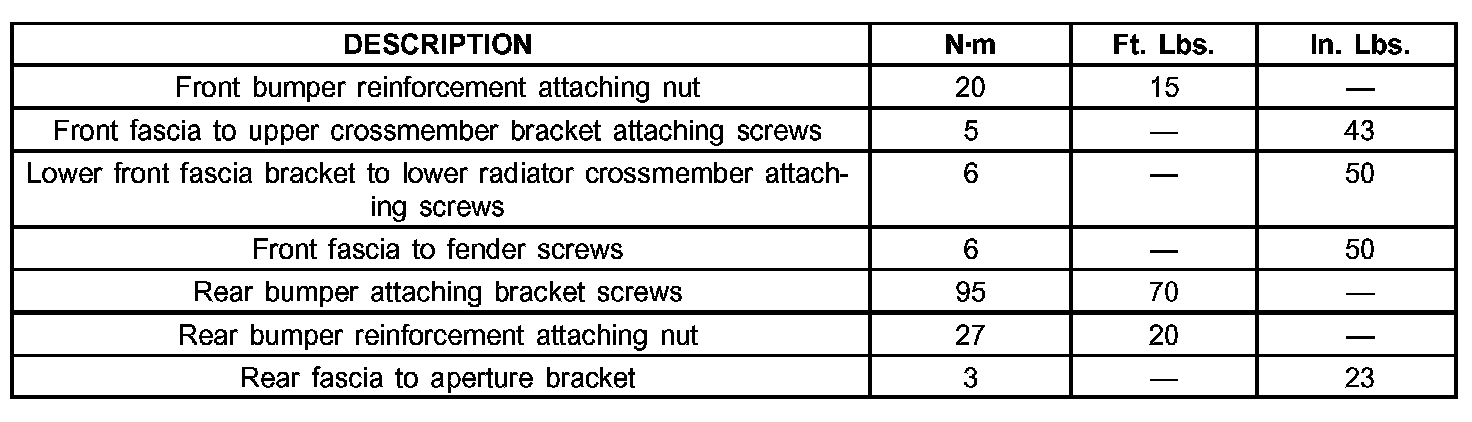

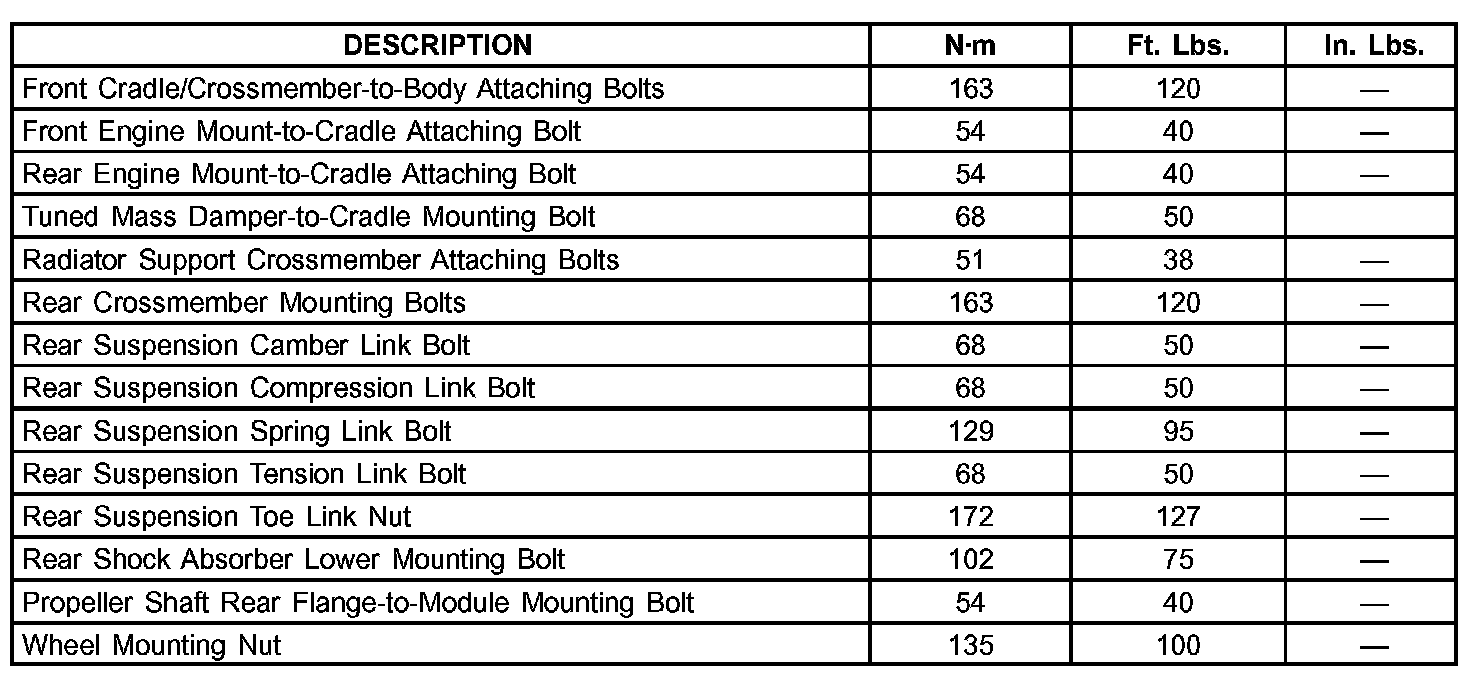

Frame and Bumpers

Specifications Tightening:



Specifications Torque:
