Wiper Switch: Diagrams

Component ID: 425
Component : SWITCH-WIPER/WASHER

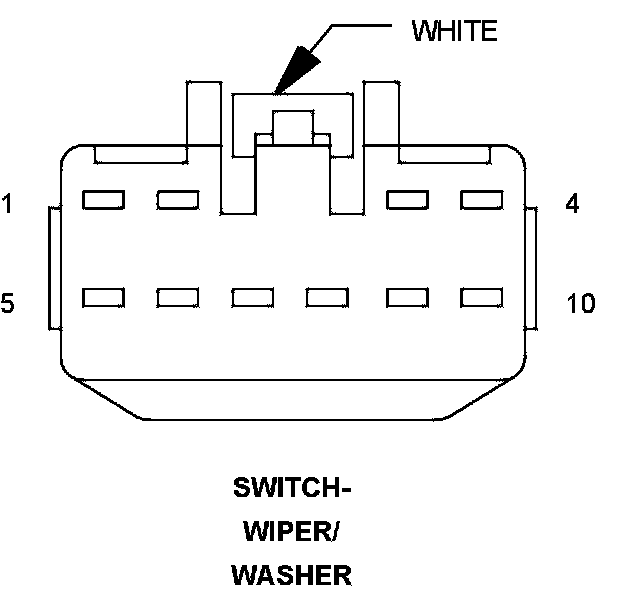

Connector:
Name : SWITCH-WIPER/WASHER
Color : WHITE
# of pins : 10




Pin Description Circuit
1 MULTI-FUNCTION SWITCH MUX RETURN G902 20VT/OR
2 - -
3 FRONT WASHER SIGNAL W33 22BR/DG
4 - -
5 REAR WIPER SWITCH MUX W26 20BR/DB
6 REAR WIPER SWITCH DELAY W27 22DB/BR
7 MULTI-FUNCTION SWITCH MUX RETURN G902 20VT/OR
8 FRONT WIPER SWITCH MUX W52 22BR/YL
9 FRONT WIPER HIGH/LOW SWITCH SENSE W35 22BR/LG
10 - -

Component Location - 14




Component Location - 21
