Washer Fluid Level Switch: Diagrams

Component ID: 387
Component : SENSOR-WASHER FLUID LEVEL

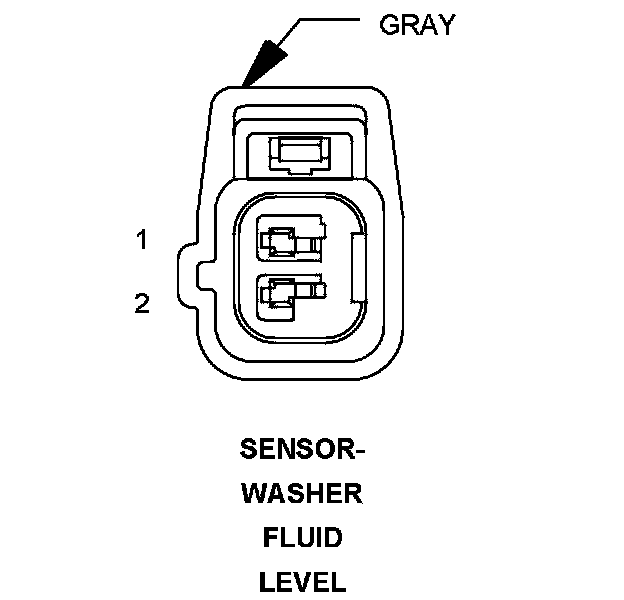

Connector:
Name : SENSOR-WASHER FLUID LEVEL
Color : GRAY
# of pins : 2




Pin Description Circuit
1 GROUND Z401 18BK/TN
2 WASHER FLUID LEVEL SWITCH SENSE W1 18BR/TN

Component Location - 6

3.8L:

Component Location - 9

4.0L:
