Fluid Pressure Sensor/Switch: Locations

Component ID: 20

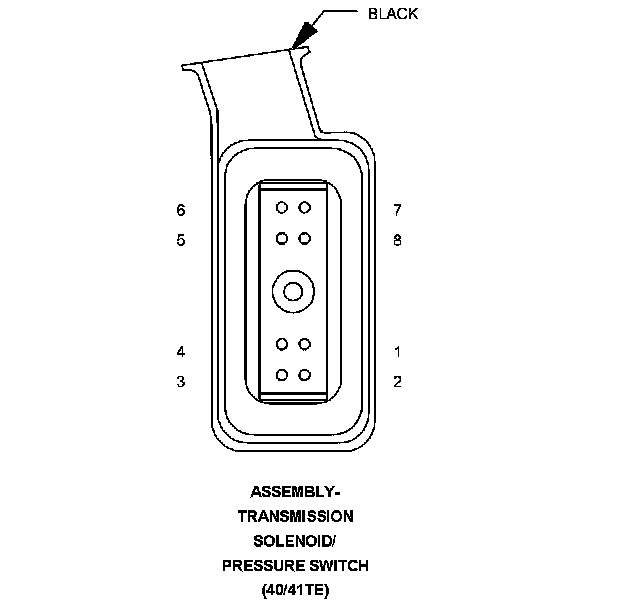

Component : ASSEMBLY-TRANSMISSION SOLENOID/PRESSURE SWITCH

Connector:
Name : ASSEMBLY-TRANSMISSION SOLENOID/PRESSURE SWITCH
Color : BLACK
# of pins : 8
Qualifier : (40/41TE)




Pin Description Circuit
1 2/4 PRESSURE SIGNAL T47 18YL/DG
2 L/R PRESSURE SIGNAL T50 18YL/TN
3 OD PRESSURE SIGNAL T9 18DG/TN
4 TRANSMISSION CONTROL OUTPUT T16 16YL/OR
5 UD CONTROL T59 18YL/LB
6 OD CONTROL T60 18YL/GY
7 L/R CONTROL T20 18WT/DG
8 2/4 CONTROL T19 18DB/YL

Component Location - 1




Component Location - 11




Component Location - 13
