Seat Belt Tension Sensor: Diagrams

Component ID: 351
Component : SENSOR-BELT TENSION

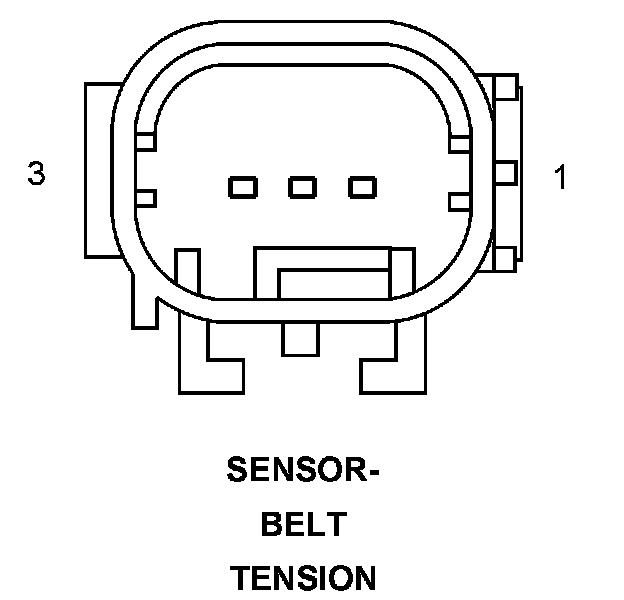

Connector:
Name : SENSOR-BELT TENSION
Color :
# of pins : 3




Pin Description Circuit
1 BELT TENSION SENSOR POWER R86 20LG/LB
2 BELT TENSION SENSOR GROUND R986 20LG/BR
3 BELT TENSION SENSOR SIGNAL R105 20WT/OR

Component Location - 30
