Camshaft Position Sensor: Diagrams

Component ID: 353
Component : SENSOR-CAMSHAFT POSITION

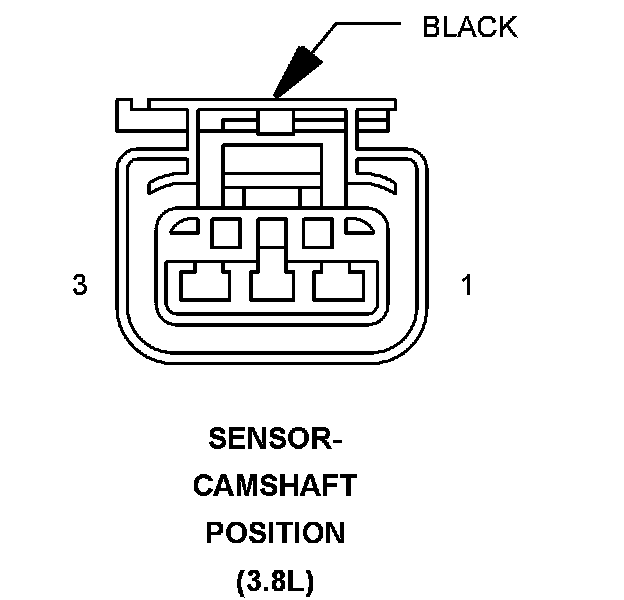

Connector:
Name : SENSOR-CAMSHAFT POSITION
Color : BLACK
# of pins : 3
Qualifier : (3.8L)




Pin Description Circuit
1 5 VOLT SUPPLY F856 20YL/PK
2 SENSOR GROUND K900 20DB/DG
3 CMP SIGNAL K44 20DB/GY

Component Location - 11

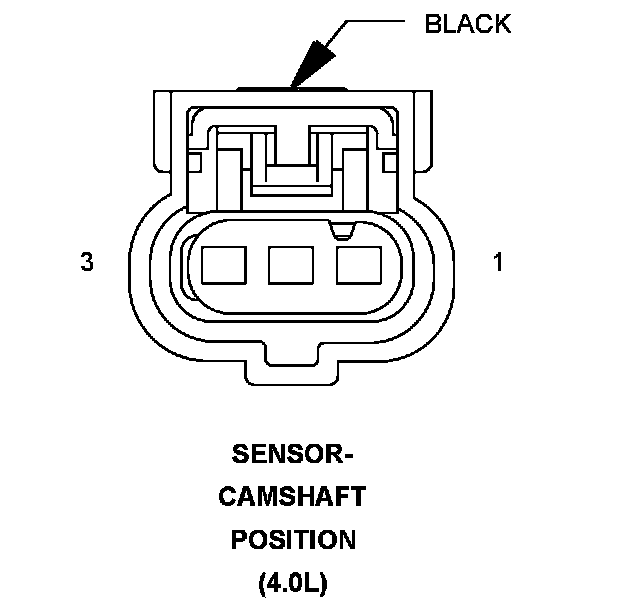

Connector:
Name : SENSOR-CAMSHAFT POSITION
Color : BLACK
# of pins : 3
Qualifier : (4.0L)




Pin Description Circuit
1 5 VOLT SUPPLY F856 20YL/PK
2 CMP SIGNAL K44 20DB/GY
3 SENSOR GROUND K900 20DB/DG

Component Location - 11
