Home
>>
Chrysler
>>
2007
>>
Pacifica V6-4.0L VIN X
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Cruise Control
>>
Cruise Control Switch
>>
Service and Repair
>>
Removal
Removal
REMOVAL
1.
Disconnect the negative battery cable.
2.

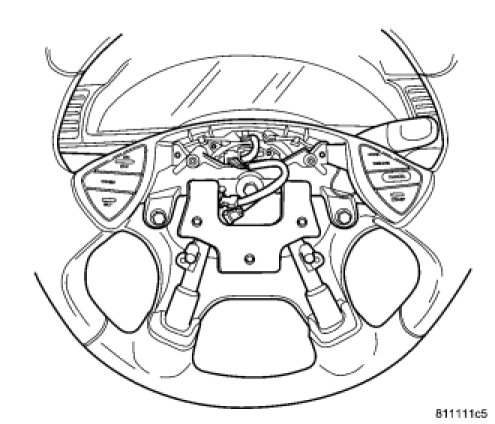

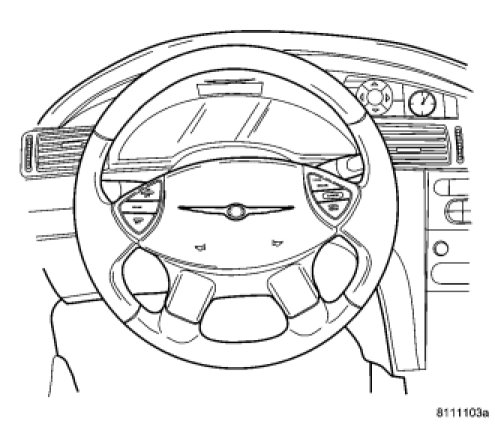

Remove the Driver side Airbag.
3.

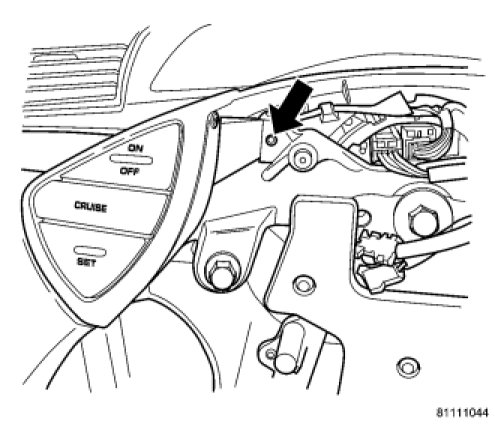

Remove the speed control switch mounting screw.
4.
Disconnect the electrical connector from switch.
5.
Remove switch.
