Traction Control Switch: Diagrams

Component ID: 422
Component : SWITCH-TRACTION CONTROL

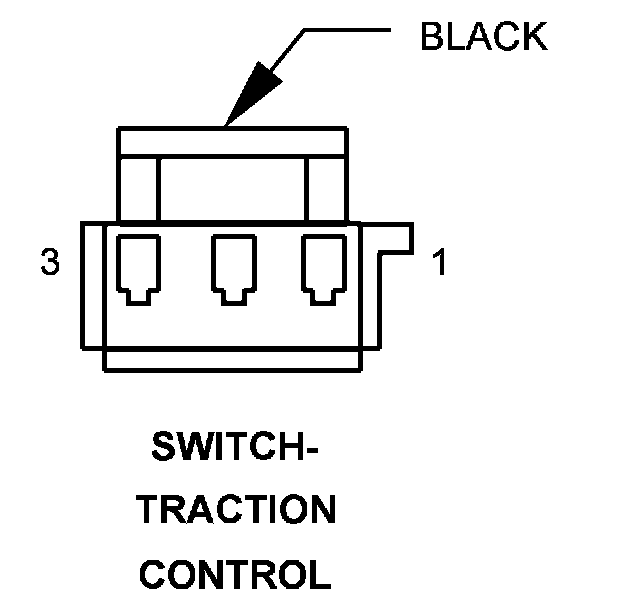

Connector:
Name : SWITCH-TRACTION CONTROL
Color : BLACK
# of pins : 3




Pin Description Circuit
1 GROUND Z427 20BK/WT
2 PANEL LAMPS DRIVER E12 18OR/GY
3 TRACTION CONTROL SWITCH SENSE B27 20DG/WT

Component Location - 14




Component Location - 23
