Switch-Heated Seat Middle Row-Right

Component ID: 406
Component : SWITCH-HEATED SEAT MIDDLE ROW-RIGHT

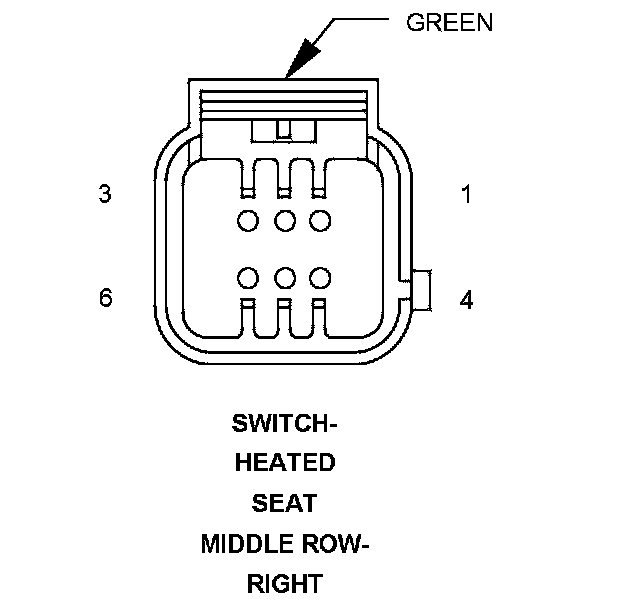

Connector:
Name : SWITCH-HEATED SEAT MIDDLE ROW-RIGHT
Color : GREEN
# of pins : 6




Pin Description Circuit
1 RIGHT MIDDLE ROW SEAT LOW INDICATOR DRIVER P182 20LG/OR
2 PANEL LAMPS DRIVER E12 18OR/GY
3 GROUND Z870 20BK/YL
4 FUSED RUN RELAY OUTPUT F525 16TN/PK
5 RIGHT MIDDLE ROW SEAT HIGH INDICATOR DRIVER P184 20LG/GY
6 RIGHT MIDDLE ROW SEAT SWITCH MUX P96 20LB/LG

Component Location - 24
