Switch-Heated Seat Middle Row-Left

Component ID: 405
Component : SWITCH-HEATED SEAT MIDDLE ROW-LEFT

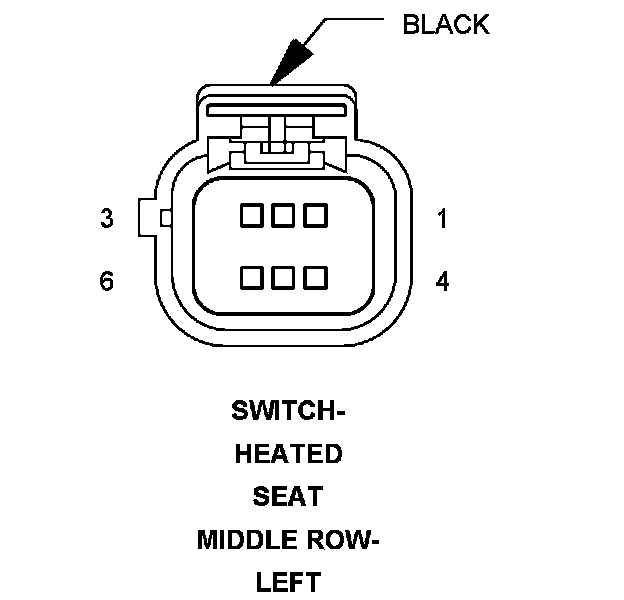

Connector:
Name : SWITCH-HEATED SEAT MIDDLE ROW-LEFT
Color : BLACK
# of pins : 6




Pin Description Circuit
1 LEFT MIDDLE ROW SEAT LOW INDICATOR DRIVER P181 20LG/DB
2 PANEL LAMPS DRIVER E12 18OR/GY
3 GROUND Z870 20BK/YL
4 FUSED RUN RELAY OUTPUT F525 16TN/PK
5 LEFT MIDDLE ROW SEAT HIGH INDICATOR DRIVER P183 20LG/YL
6 LEFT MIDDLE ROW SEAT SWITCH MUX P77 20LG

Component Location - 24
