Switch-Seat-Driver

Component ID: 417
Component : SWITCH-SEAT-DRIVER

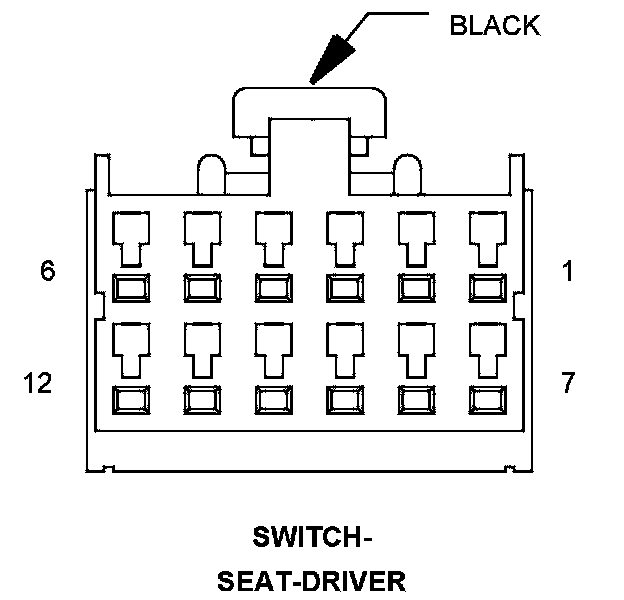

Connector:
Name : SWITCH-SEAT-DRIVER
Color : BLACK
# of pins : 12




Pin Description Circuit
1 MEMORY SET SWITCH INDICATOR DRIVER P101 20LG/WT
2 DRIVER HEATED SEAT HIGH INDICATOR DRIVER P83 20TN/WT
3 DRIVER HEATED SEAT LOW INDICATOR DRIVER P81 20TN/LB
4 SEAT SWITCH MUX RETURN P989 20TN/LG
5 ILLUMINATION GROUND Z301 20TN/BK
6 DRIVER DOOR SWITCH ILLUMINATION DRIVER P301 20LG/OR
7 DRIVER SEAT RECLINER/LUMBAR OUT SWITCH MUX P311 20LG/VT
8 DRIVER SEAT HORIZONTAL/LUMBAR IN SWITCH MUX P309 20LG/VT
9 DRIVER SEAT FRONT RISER/PEDAL FORWARD SWITCH MUX P200 20LG/YL
10 DRIVER HEATED SEAT SWITCH MUX P7 20LG/DG
11 MEMORY SELECT SWITCH MUX G200 20VT/BR
12 DRIVER SEAT REAR RISER/PEDAL BACK SWITCH MUX P202 20LG/DB

Component Location - 42
