Switch-Seat-Passenger

Component ID: 418
Component : SWITCH-SEAT-PASSENGER

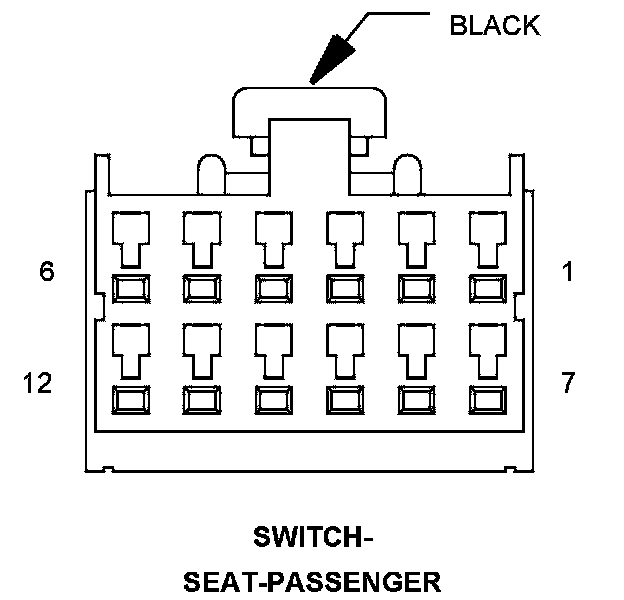

Connector:
Name : SWITCH-SEAT-PASSENGER
Color : BLACK
# of pins : 12




Pin Description Circuit
1 - -
2 PASSENGER HEATED SEAT HIGH INDICATOR DRIVER P84 20TN/VT
3 PASSENGER HEATED SEAT LOW INDICATOR DRIVER P82 20TN/DG
4 SEAT SWITCH MUX RETURN P988 20LG/TN
5 ILLUMINATION GROUND Z302 20LG/BK
6 PASSENGER DOOR SWITCH ILLUMINATION DRIVER P302 20TN/OR
7 PASSENGER SEAT RECLINER SWITCH MUX P308 20LG/VT
8 PASSENGER SEAT HORIZONTAL SWITCH MUX P310 20LG/OR
9 - -
10 PASSENGER HEATED SEAT SWITCH MUX P8 20LG/WT
11 - -
12 - -

Component Location - 42
