Sensor-Seat Position-Driver Rear Riser

Component ID: 377

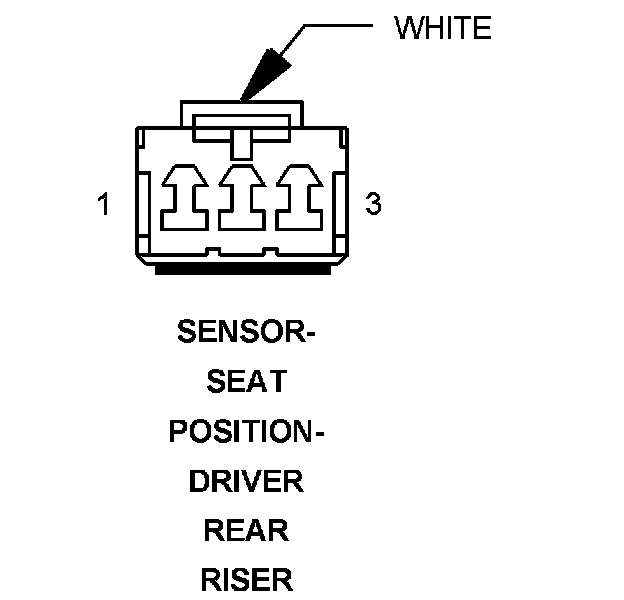

Component : SENSOR-SEAT POSITION-DRIVER REAR RISER

Connector:
Name : SENSOR-SEAT POSITION-DRIVER REAR RISER
Color : WHITE
# of pins : 3




Pin Description Circuit
1 DRIVER SEAT POSITION SENSOR 5 VOLT SUPPLY P29 20LG/WT
2 DRIVER SEAT REAR RISER POSITION SIGNAL P27 20LG/DB
3 DRIVER SEAT POSITION SENSOR GROUND P28 20LG/BR

Component Location - 38
