Sensor-Park Assist-No. 8

Component ID: 373

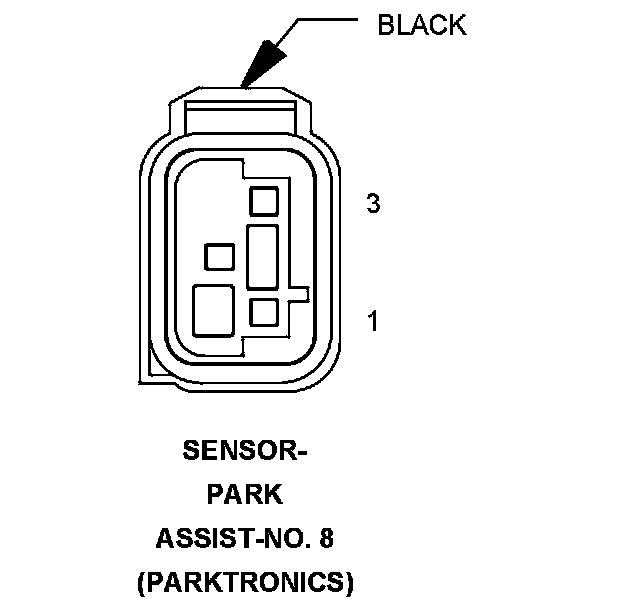

Component : SENSOR-PARK ASSIST-NO. 8

Connector:
Name : SENSOR-PARK ASSIST-NO. 8
Color : BLACK
# of pins : 3
Qualifier : (PARKTRONICS)




Pin Description Circuit
1 PARK ASSIST SENSOR SUPPLY X700 20GY/OR
2 PARK ASSIST SENSOR NO. 8 SIGNAL D701 20WT/LB
3 PARK ASSIST SENSOR GROUND X750 20GY/LB
