Sensor-Park Assist-No. 7

Component ID: 372

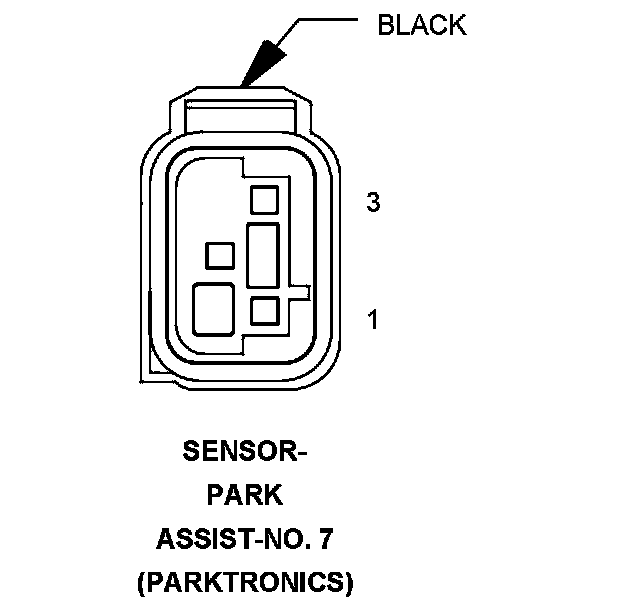

Component : SENSOR-PARK ASSIST-NO. 7

Connector:
Name : SENSOR-PARK ASSIST-NO. 7
Color : BLACK
# of pins : 3
Qualifier : (PARKTRONICS)




Pin Description Circuit
1 PARK ASSIST SENSOR SUPPLY X700 20GY/OR
2 PARK ASSIST SENSOR NO. 7 SIGNAL D700 20WT/GY
3 PARK ASSIST SENSOR GROUND X750 20GY/LB
