Installation

INSTALLATION

SEAT BELT WEB STOP BUTTON

The only component of the seat belt and retractor that is available for individual service replacement is the plastic web stop button that prevents the latch plate from falling to the floor while in the stored position. Refer to the instructions supplied with the service kit for the proper web stop button replacement procedures.

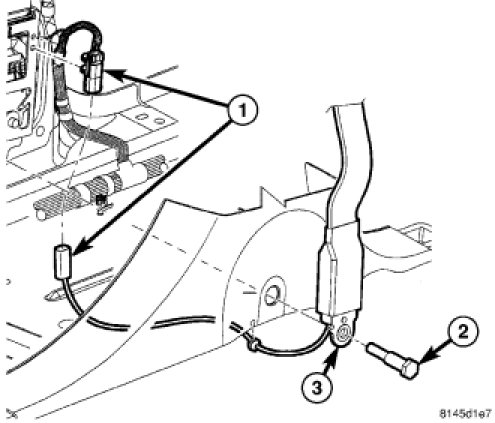

NOTE: If equipped with the Occupant Classification System (OCS), there will be a harness pigtail (1) attached to the lower anchor bracket (3). Take care not to damage this while removing the lower B-pillar trim and anchor bolt (2).

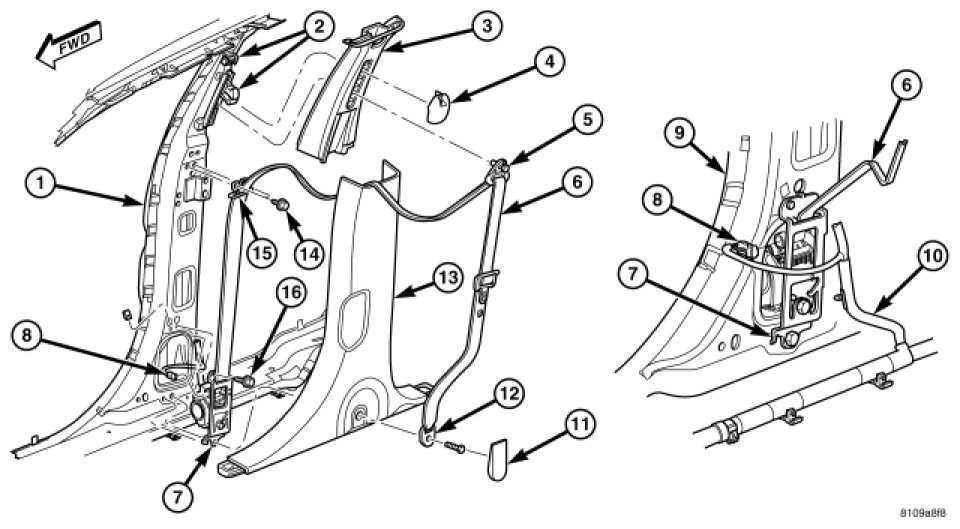

1. Position seat belt and retractor (6) in vehicle.

2. Install the turning loop (5) retaining bolt in the seat belt height adjuster (3) on the B-pillar (1). Tighten bolt to 40 Nm (30 ft. lbs.) and install seat belt turning loop cover (11).

3. Position the height adjuster knob cover (4) onto the height adjuster knob and firmly snap into place.

4. Install the seat belt retractor mounting bolt (7). Tighten bolt to 40 Nm (30 ft. lbs.).

5. Slip the B-pillar seat belt retaining ring (15) onto the seat belt webbing and then install the two B-pillar seat belt retaining ring mounting screws (14).

6. Connect the retractor electrical connector (8).

7. If equipped with Occupant Classification System (OCS), connect the harness connector to the belt tension sensor prior to installing the B-pillar trim.

8. Install the lower B-pillar trim.

9. Install the lower seat belt anchor bolt (12) and lower seat belt anchor bolt cover (11) through lower B-pillar. Tighten bolt to 40 Nm (30 ft. lbs.).

WARNING: Do not connect the battery negative cable. Personal injury or death may result if the system test is not performed first.

10. Close hood.
