Heated Glass Element Relay: Diagrams

Component ID: 235

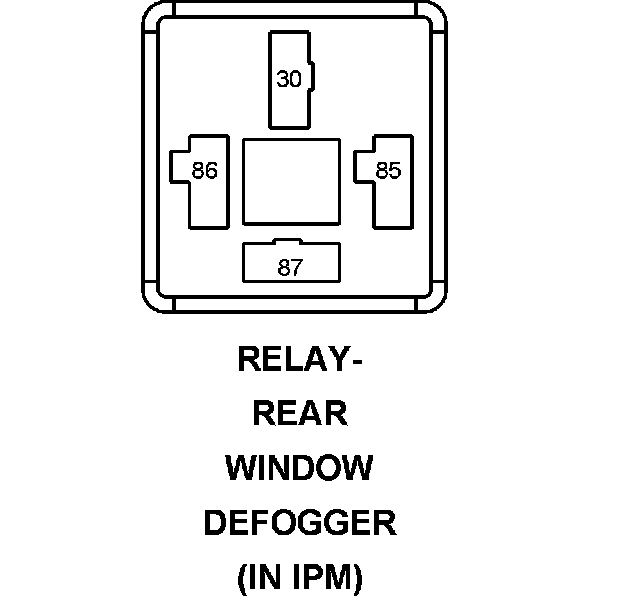

Component : RELAY-REAR WINDOW DEFOGGER

Connector:
Name : RELAY-REAR WINDOW DEFOGGER
Color :
# of pins : 0




30 FUSED B(+) INTERNAL
85 FUSED B(+) INTERNAL
86 REAR WINDOW DEFOGGER RELAY CONTROL INTERNAL
87 REAR WINDOW DEFOGGER RELAY OUTPUT C15 12DB/WT
87A - -
