Transponder-Tire Pressure-Left Rear

Component ID: 429
Component : TRANSPONDER-TIRE PRESSURE-LEFT REAR

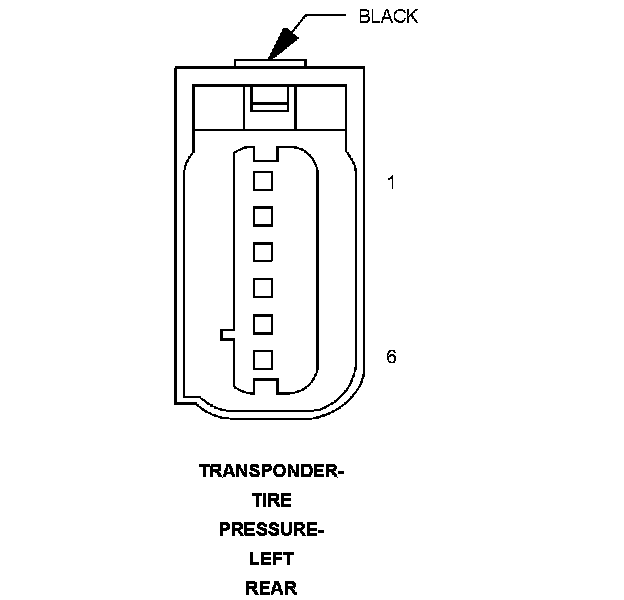

Connector:
Name : TRANSPONDER-TIRE PRESSURE-LEFT REAR
Color : BLACK
# of pins : 6




Pin Description Circuit
1 FUSED ACCESSORY RELAY OUTPUT F316 20PK/OR
2 COM-LIN TIRE PRESSURE MONITOR LAN D508 20WT/GY
3 GROUND Z965 20BK/LB
4 - -
5 - -
6 - -
