Relay-Booster Fan-Rear

Component ID: 228

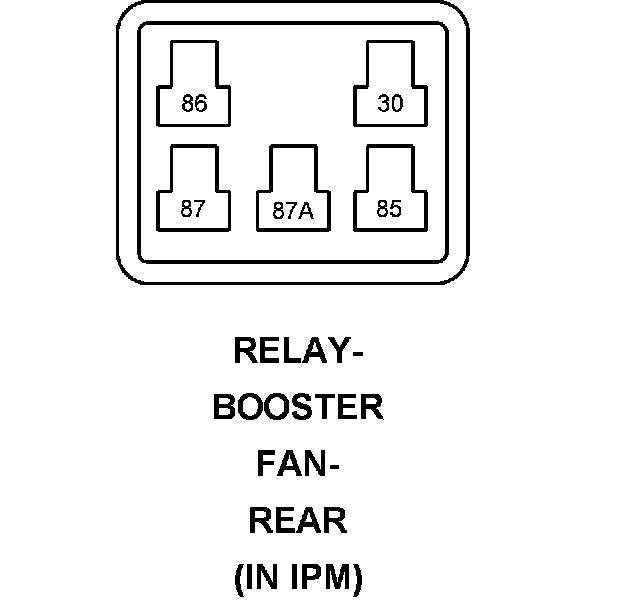

Component : RELAY-BOOSTER FAN-REAR

Connector:
Name : RELAY-BOOSTER FAN-REAR
Color :
# of pins : 0




30 B(+) INTERNAL
85 B(+) INTERNAL
86 REAR BOOSTER FAN RELAY CONTROL INTERNAL
87 FUSED REAR BOOSTER FAN RELAY OUTPUT C51 18LB/BR
87A - -
