Radiator Cooling Fan Motor Relay: Locations

Component ID: 234
Component : RELAY-RADIATOR FAN CONTROL

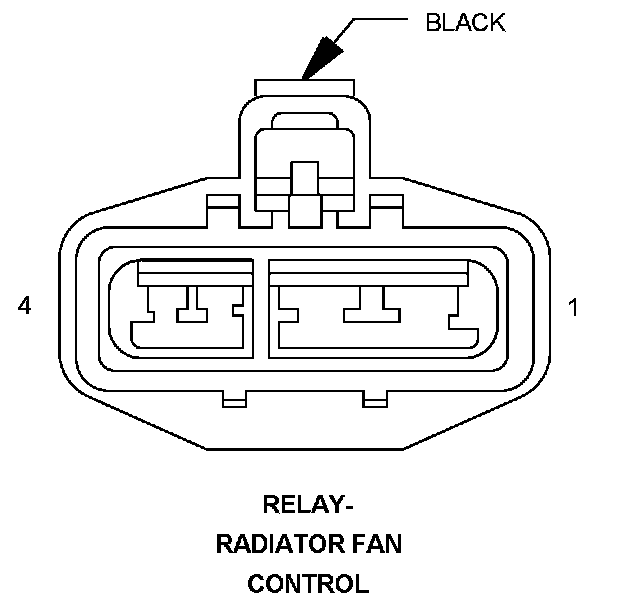

Connector:
Name : RELAY-RADIATOR FAN CONTROL
Color : BLACK
# of pins : 4




Pin Description Circuit
1 FUSED B(+) A112 12OR/RD
2 RADIATOR FAN RELAY OUTPUT N23 12DB/DG
3 GROUND Z723 18BK/DG
4 RAD FAN RELAY CONTROL K173 18BR/VT

Component Location - 5
