Sunroof / Moonroof Module: Diagrams

Component ID: 196

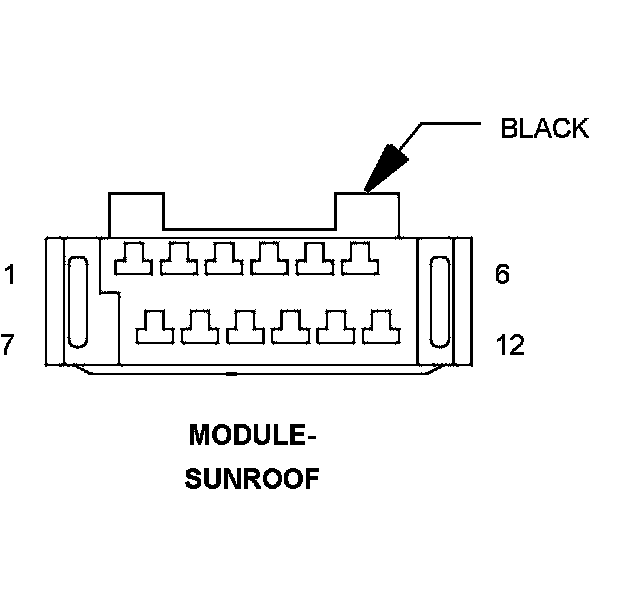

Component : MODULE-SUNROOF

Connector:
Name : MODULE-SUNROOF
Color : BLACK
# of pins : 12




Pin Description Circuit
1 SUNROOF OPEN Q3 20OR/TN
2 SUNROOF CLOSE Q5 20OR/LB
3 SUNROOF VENT Q4 20OR/WT
4 FUSED ACCESSORY RELAY OUTPUT F316 20PK/OR
5 FUSED B(+) A130 12VT/RD
6 GROUND Z138 12BK/VT
7 - -
8 - -
9 - -
10 - -
11 - -
12 - -

Component Location - 27
