Air Temperature Sensor ( Ambient / Intake ): Diagrams

Component ID: 361
Component : SENSOR-INTAKE AIR TEMPERATURE

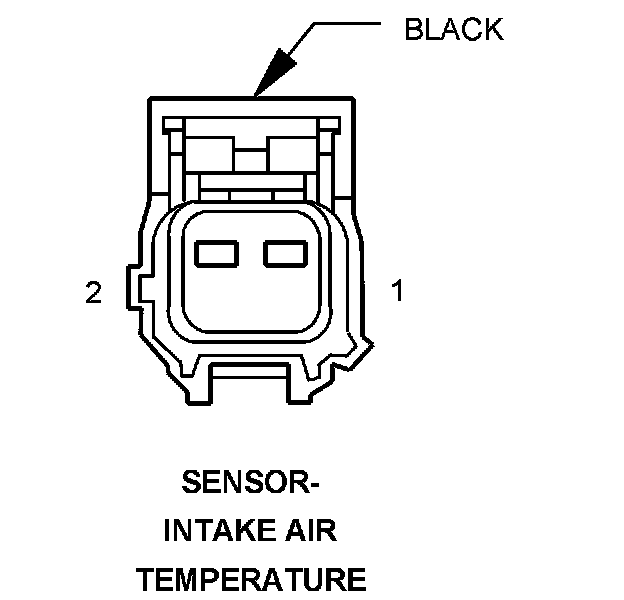

Connector:
Name : SENSOR-INTAKE AIR TEMPERATURE
Color : BLACK
# of pins : 2




Pin Description Circuit
1 SENSOR GROUND K900 20DB/DG
2 IAT SIGNAL K21 20BR/WT

Component Location - 11




Component Location - 12
