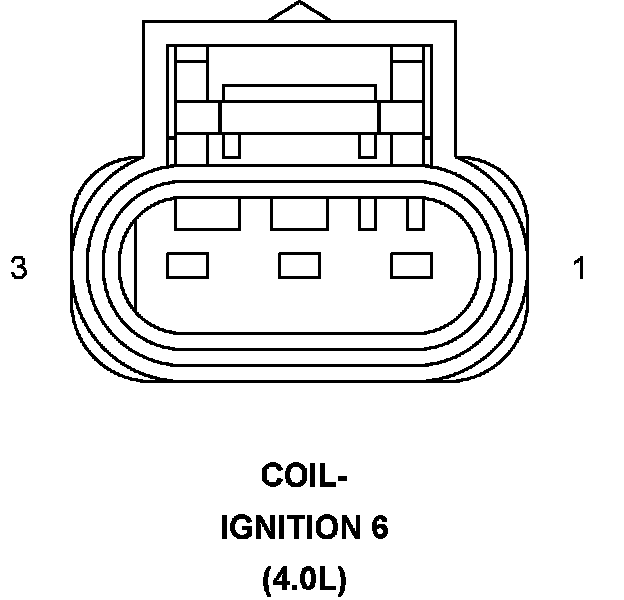

Coil-Ignition 6
Component ID: 68
Component : COIL-IGNITION 6
Connector:
Name : COIL-IGNITION 6
Color :
# of pins : 3
Qualifier : (4.0L)
Pin Description Circuit
1 - -
2 COIL 6 CONTROL K10 18DB/OR
3 ASD RELAY OUTPUT F343 16PK/BR
Component ID: 68
Component : COIL-IGNITION 6
Connector:
Name : COIL-IGNITION 6
Color :
# of pins : 3
Qualifier : (4.0L)
Pin Description Circuit
1 - -
2 COIL 6 CONTROL K10 18DB/OR
3 ASD RELAY OUTPUT F343 16PK/BR
