Coil-Ignition 5

Component ID: 67

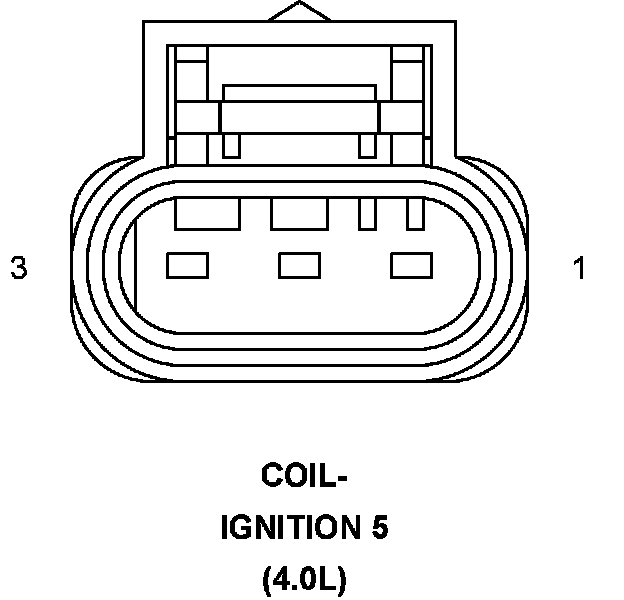

Component : COIL-IGNITION 5

Connector:
Name : COIL-IGNITION 5
Color :
# of pins : 3
Qualifier : (4.0L)




Pin Description Circuit
1 - -
2 COIL 5 CONTROL K16 18DB/YL
3 ASD RELAY OUTPUT F343 16PK/BR

Component Location - 12
