Removal

REMOVAL




1. Disconnect the negative battery cable.

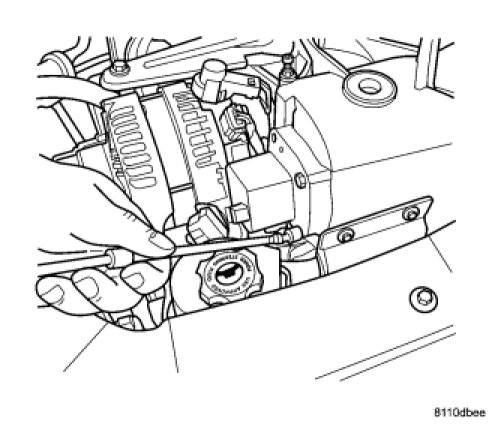

2. Remove the engine cover.

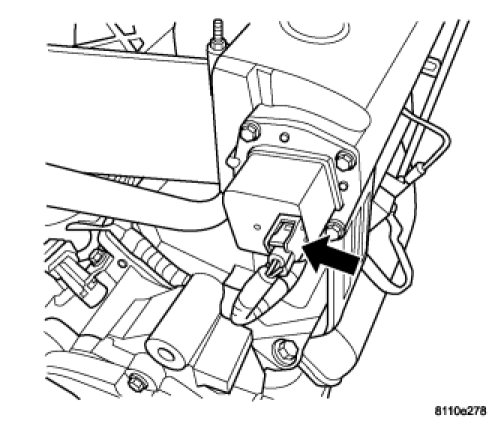

3. Disconnect the electrical connector.




4. Remove the 4 mounting bolts.




5. Pull valve straight out of manifold
