Assembly-Short Runner Valve

Component ID: 19

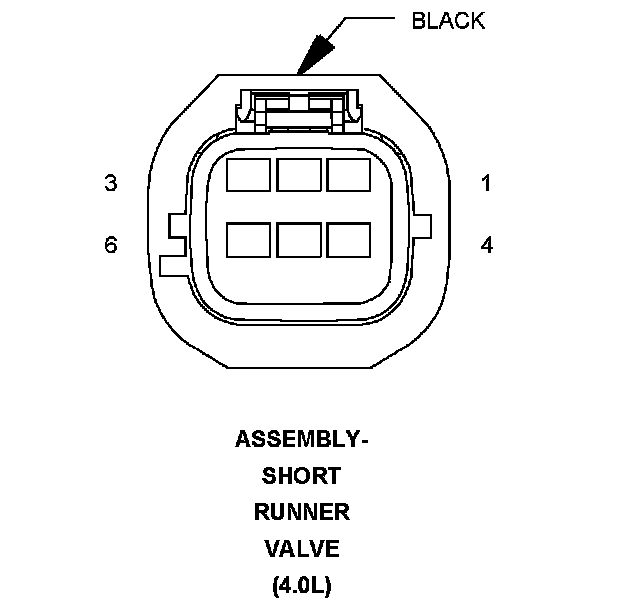

Component : ASSEMBLY-SHORT RUNNER VALVE

Connector:
Name : ASSEMBLY-SHORT RUNNER VALVE
Color : BLACK
# of pins : 6
Qualifier : (4.0L)




Pin Description Circuit
1 SRV CONTROL K236 18DB/LG
2 - -
3 ASD RELAY OUTPUT F343 16PK/BR
4 SENSOR GROUND K900 20DB/DG
5 SRV SIGNAL K235 18DB/YL
6 5 VOLT SUPPLY F856 20YL/PK

Component Location - 12
