Assembly-Manifold Tune Valve

Component ID: 16

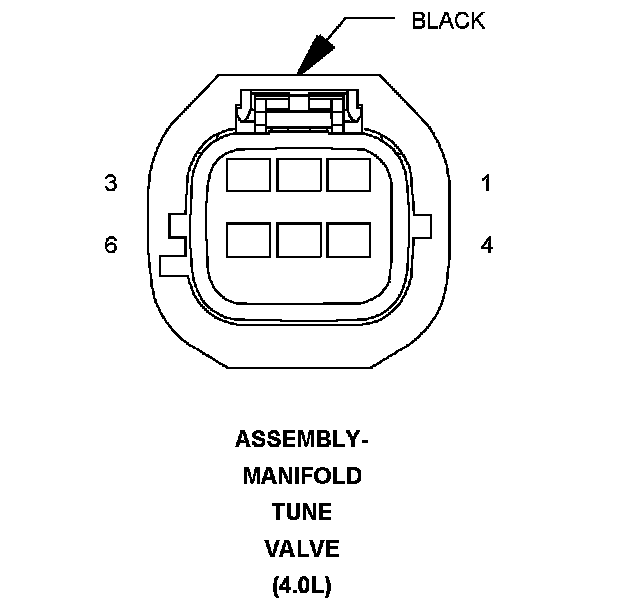

Component : ASSEMBLY-MANIFOLD TUNE VALVE

Connector:
Name : ASSEMBLY-MANIFOLD TUNE VALVE
Color : BLACK
# of pins : 6
Qualifier : (4.0L)




Pin Description Circuit
1 GROUND Z816 20BK/LG
2 - -
3 MTV CONTROL K136 18BR
4 SENSOR GROUND K900 20DB/DG
5 MTV SIGNAL K234 18DB/OR
6 5 VOLT SUPPLY F855 20PK/YL
