Installation

INSTALLATION

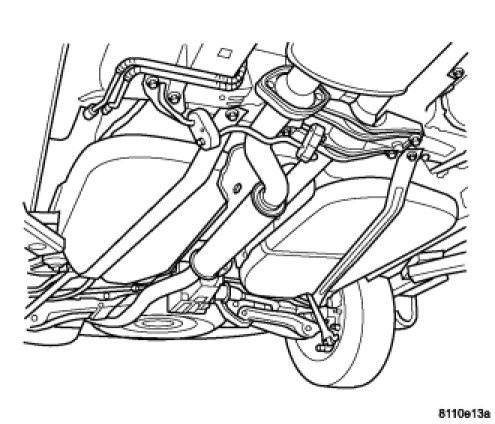

1. Support the fuel tank with a transmission jack.

2. Raise fuel tank and install to vehicle.




3. Install the 2 fuel tank straps.

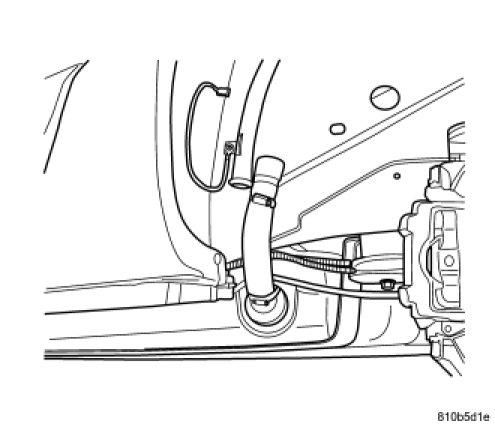

4. Install the fuel filler tube to the rubber hose at fuel tank.




5. Connect the vapor recirculation tube.

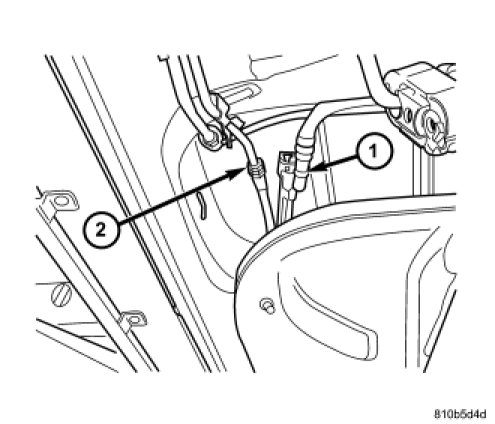

6. Connect the fuel line and EVAP line.

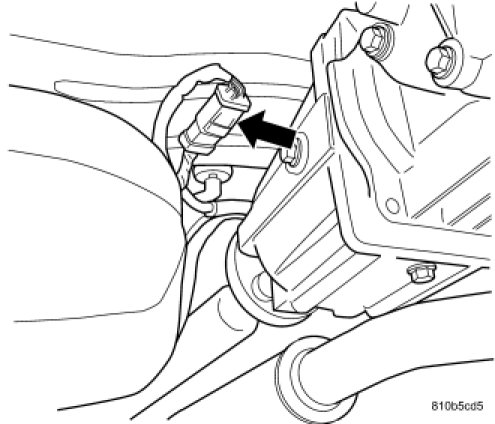

7. Connect the fuel tank electrical connector.

8. Support driveshaft on jack.

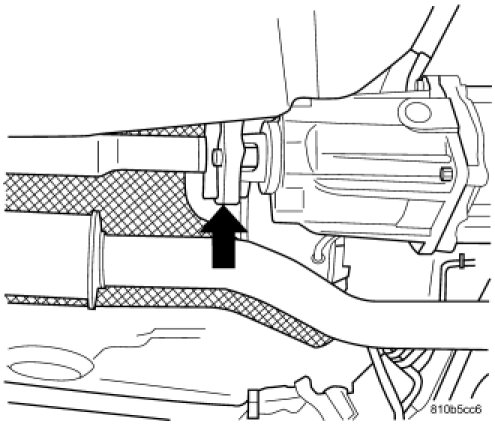

9. Install the driveshaft support/bearing.




10. Align the Marks on the driveshaft to the rear connection.

11. Connect the driveshaft rear connection.




12. Install the exhaust system and tighten clamp.

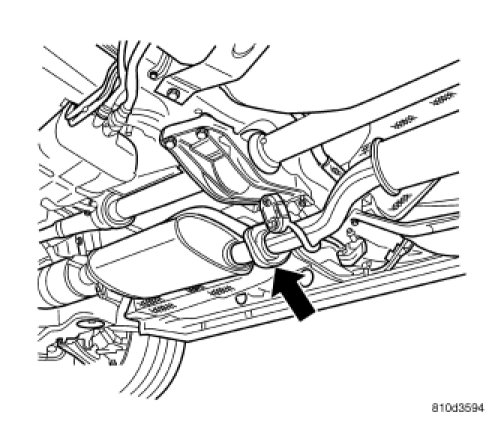

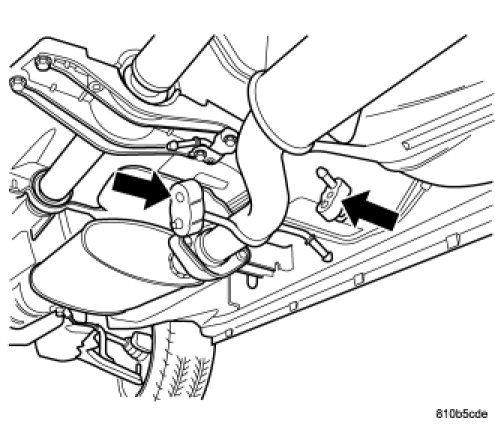

13. Install the center exhaust hanger rubber gromments.

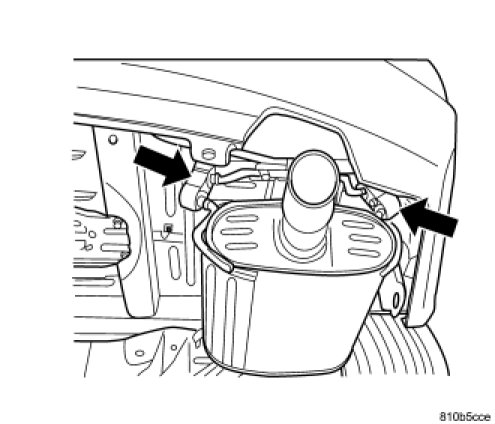

14. Install muffler hanger rubber gromments.




15. Install the left rear tire.

16. Lower vehicle.

17. Connect the negative battery cable.

18. Fill fuel tank. Use the scan tool to pressurize the fuel system. Check for leaks.
