Installation

INSTALLATION

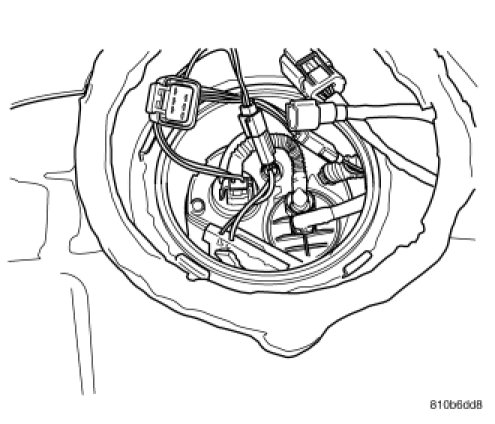

1. Install fuel pump module into fuel tank.

2. Connect siphon and fuel line to fuel pump module.

3. Connect fuel pump electrical connector to bottom of module top.

4. The wire connector to the passenger side level sensor needs to be connected.




5. Install fuel pump module top to module.




6. Install Fuel Pump Module gasket and lock ring.

NOTE: Use a brass punch to install the 1/4 turn lock ring.

7. Connect vapor line and electrical connector.

8. Install fuel tank,

9. Connect negative battery cable.

10. Fill fuel tank. Use the scan tool to pressurize fuel system. Check for leaks.
