Installation

4.0L

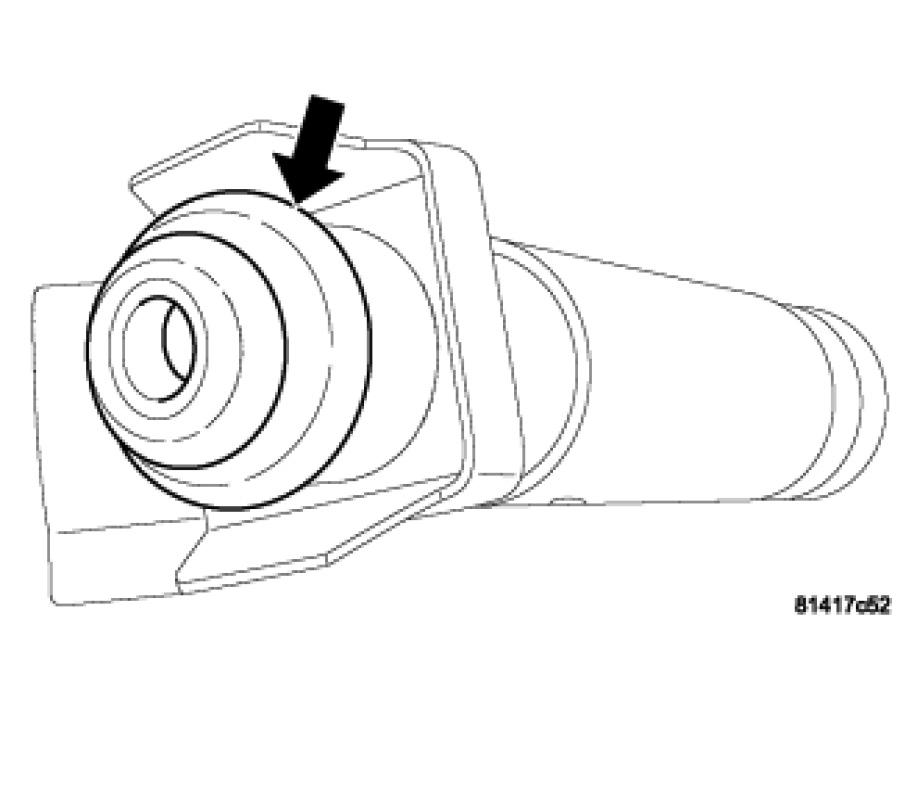

1. Lightly lubricate the fuel injector O-rings with a couple drops of clean engine oil.

2. Install retaining clips on fuel injectors.

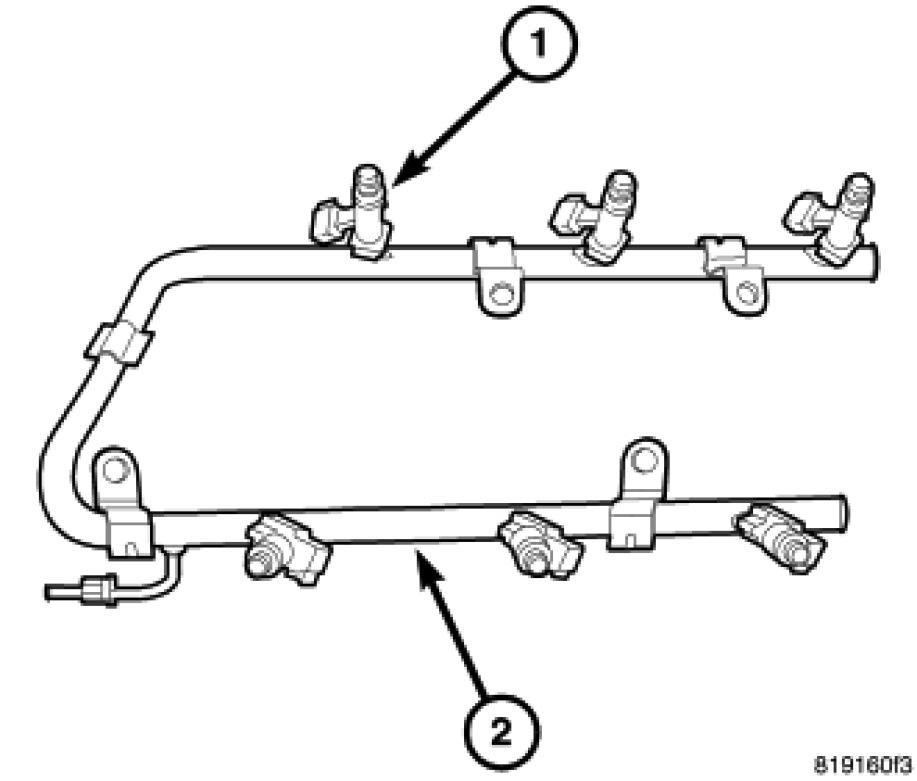

3. Push injectors into fuel injector rail until clips are in the correct position.




4. Lightly lubricate the fuel injector O-rings with a couple drops of clean engine oil.




5. Position fuel rail over cylinder heads, and push rail into place. Tighten fuel rail mounting bolts to 28 Nm (250 in. lbs.) torque.

6. Connect the fuel supply tube quick connect fitting to the fuel rail.

7. Connect and lock the electrical connectors to the fuel injectors.

8. Install intake manifold plenum,

9. Connect negative cable to battery.
