Injector-Fuel 1

Component ID: 136

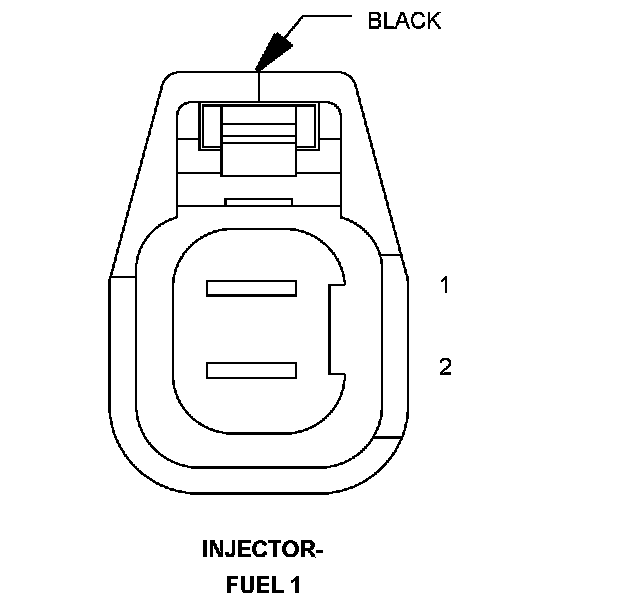

Component : INJECTOR-FUEL 1

Connector:
Name : INJECTOR-FUEL 1
Color : BLACK
# of pins : 2




Pin Description Circuit
1 ASD RELAY OUTPUT K344 16BR/GY
Pin Description Circuit
1 ASD RELAY OUTPUT F343 16BR/WT
2 INJECTOR 1 CONTROL K11 16BR/YL

Component Location - 12
