Installation

4.0L

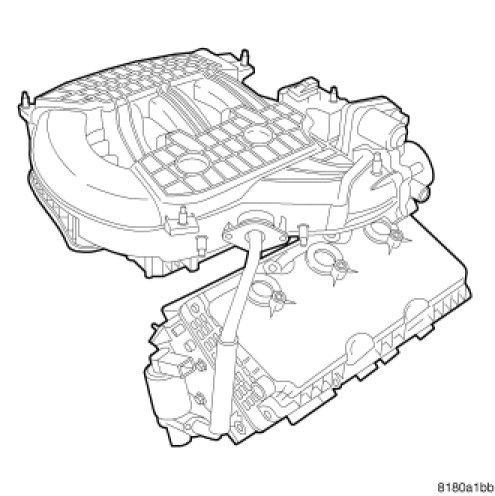

1. Clean mounting surface.




2. Inspect rubber silicone seals on intake manifold end of EGR tube.

3. Install tube into the intake manifold being careful that the silicone rubber seals are correctly installed and undamaged.

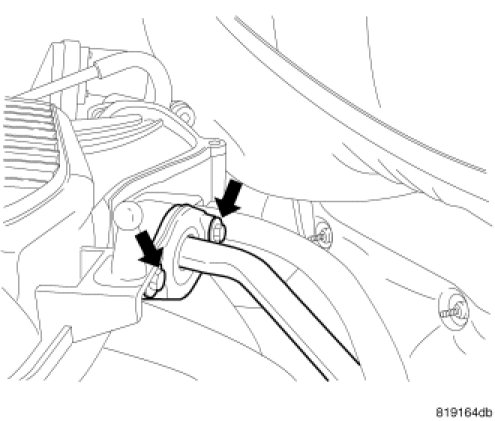

4. Install the tube bolts to EGR valve.

5. Tighten the EGR tube to EGR valve bolts to 13 Nm (115 in. lbs.) torque.

6. Connect the electrical connector to EGR valve and lock.

7. Connect negative battery cable.
