Leak Detector: Diagrams

Component ID: 404

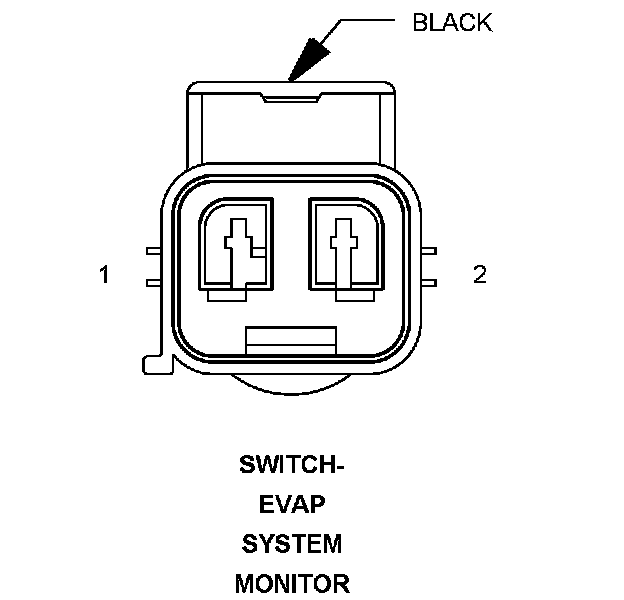

Component : SWITCH-EVAP SYSTEM MONITOR

Connector:
Name : SWITCH-EVAP SYSTEM MONITOR
Color : BLACK
# of pins : 2




Pin Description Circuit
1 GROUND Z166 18BK/WT
2 ESM SIGNAL K107 20VT/WT

Component Location - 1




Component Location - 36
