Installation

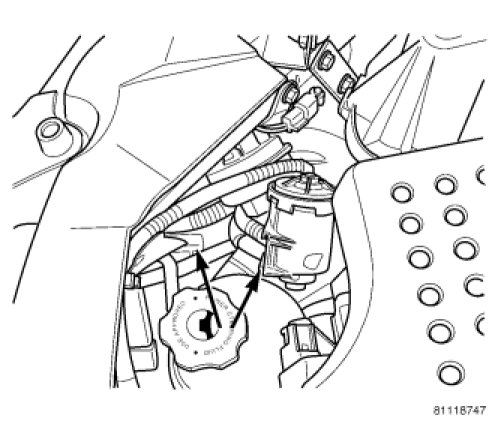

INSTALLATION




1. Connect the vacuum lines to solenoid.

2. Install solenoid to bracket.




3. Connect the electrical connector to the solenoid and lock.

4. Connect the negative battery cable.
