Sensor-Oxygen 1/2

Component ID: 368
Component : SENSOR-OXYGEN 1/2

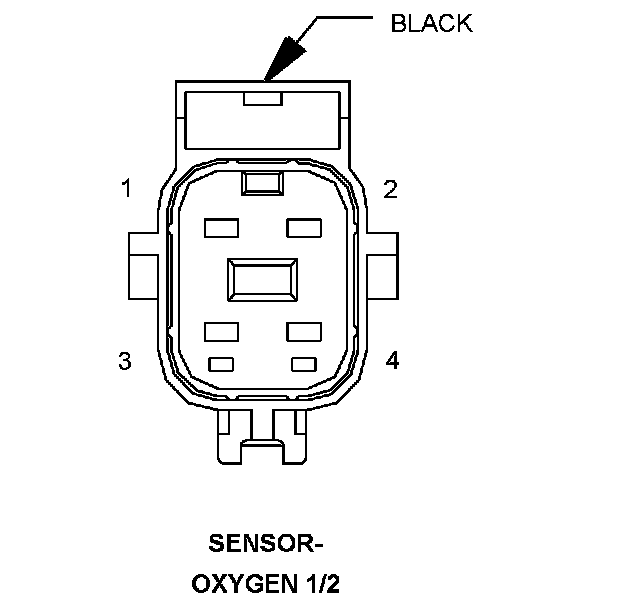

Connector:
Name : SENSOR-OXYGEN 1/2
Color : BLACK
# of pins : 4




Pin Description Circuit
1 GROUND Z43 18BK/LB
2 O2 1/2 HEATER CONTROL K299 18BR/OR
3 O2 RETURN (DOWN) K904 18DB/DG
4 O2 1/2 SIGNAL K141 18DB/YL

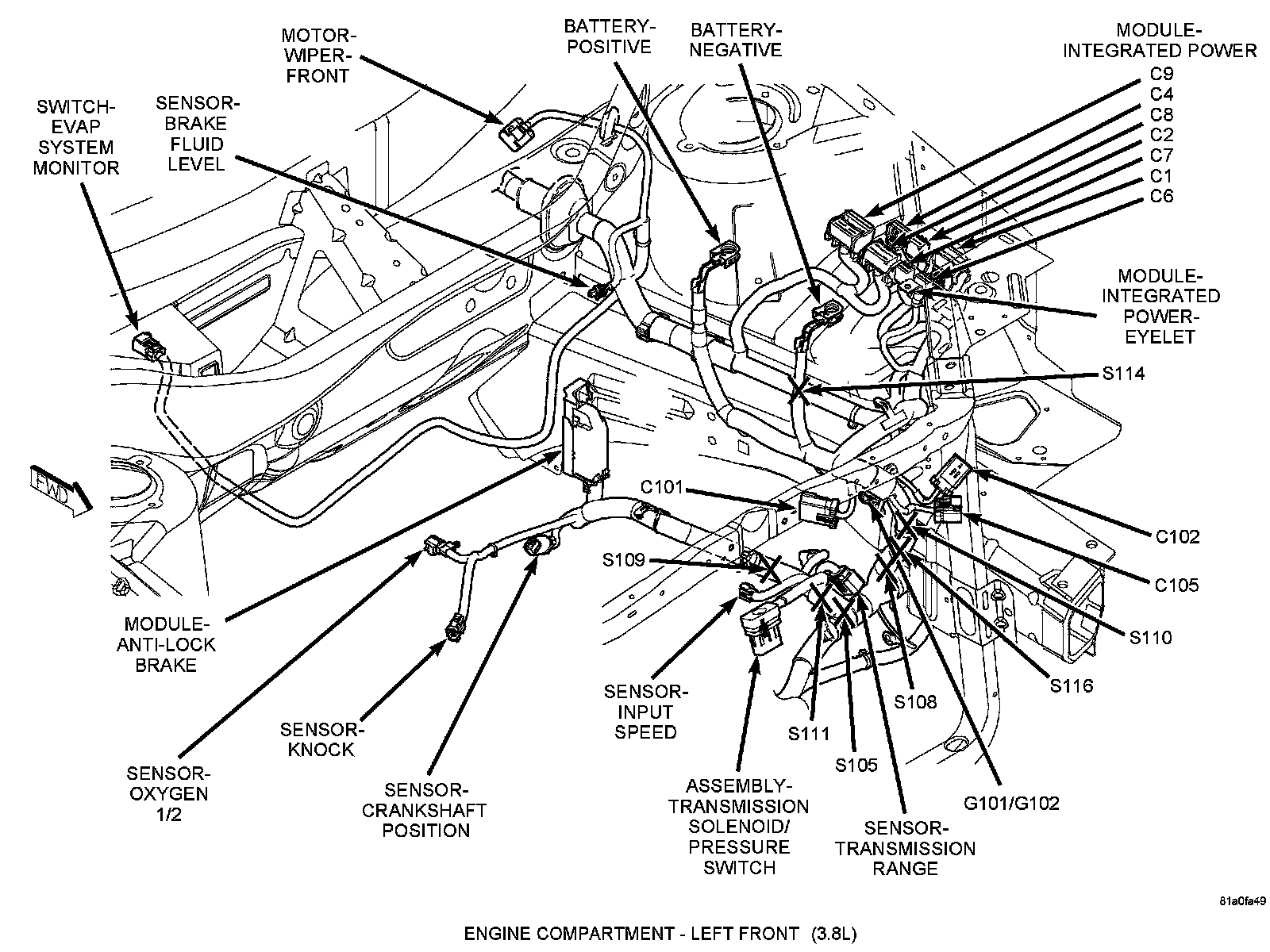

Component Location - 1

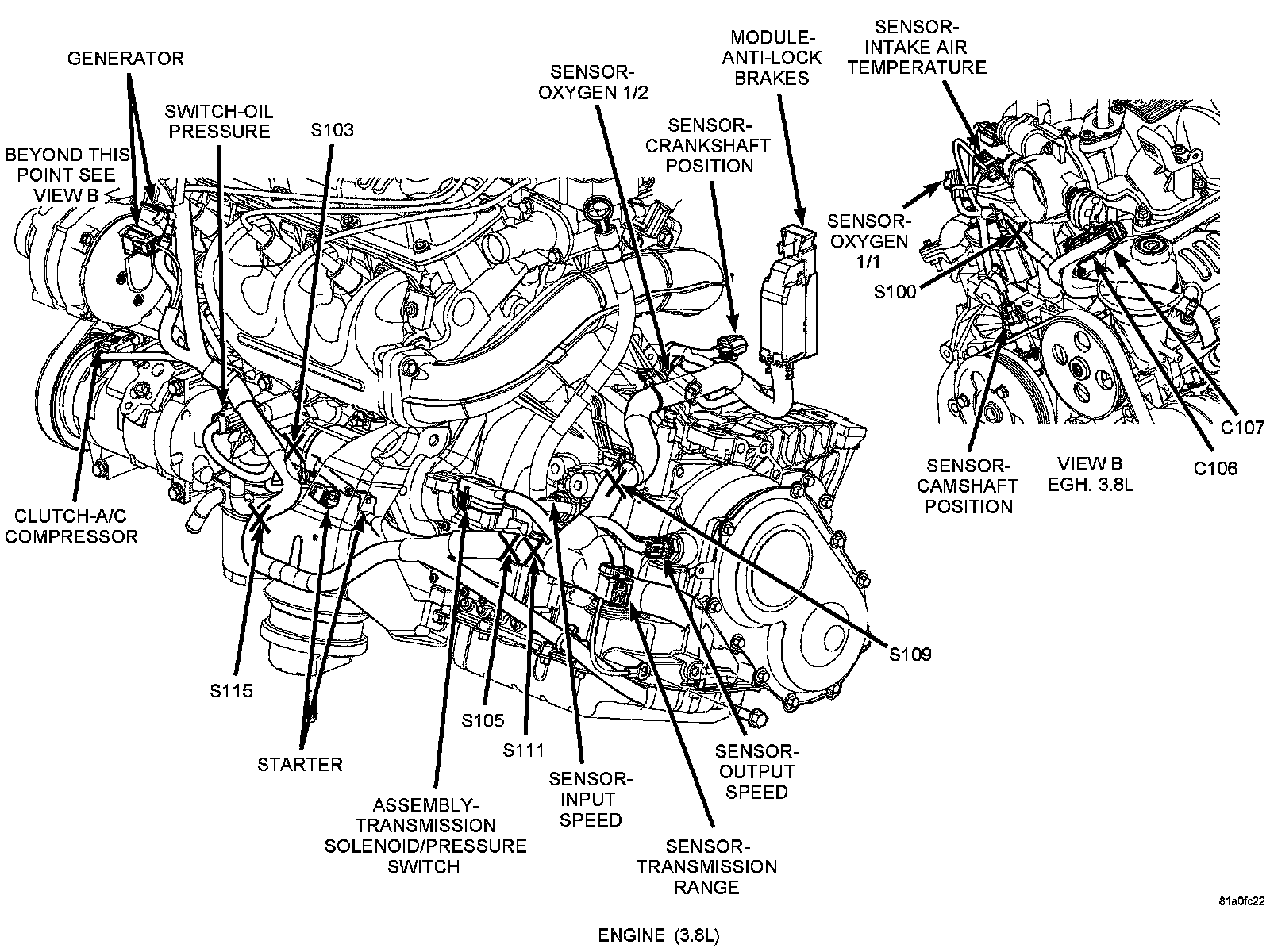

Component Location - 11
