Power Outlet-Cigar Lighter

Component ID: 216

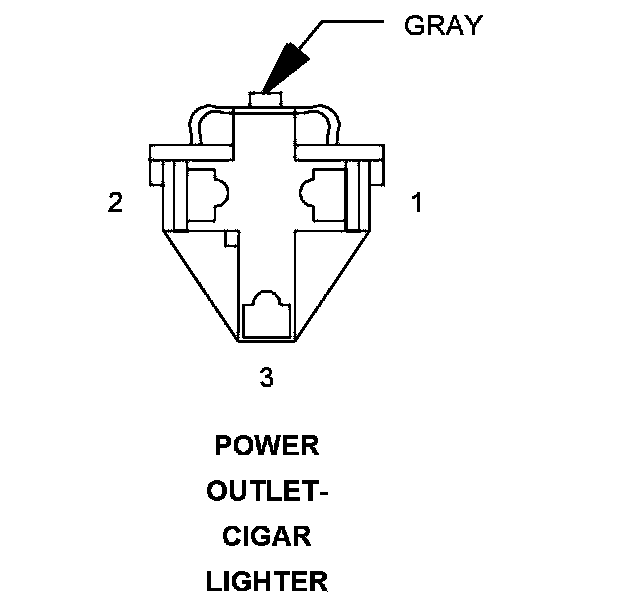

Component : POWER OUTLET-CIGAR LIGHTER

Connector:
Name : POWER OUTLET-CIGAR LIGHTER
Color : GRAY
# of pins : 3




Pin Description Circuit
1 FUSED ACCESSORY RELAY OUTPUT F306 16DB/PK
Pin Description Circuit
1 FUSED ACCESSORY RELAY OUTPUT F306 16DB/PK
2 - -
3 GROUND Z736 16BK/YL

Component Location - 14




Component Location - 17




Component Location - 19
