Combination Switch: Testing and Inspection

LEFT MULTI-FUNCTION SWITCH

Refer to the appropriate wiring information.

1. Disconnect and isolate the battery negative cable. Disconnect the instrument panel wire harness connector from the multi-function switch connector.

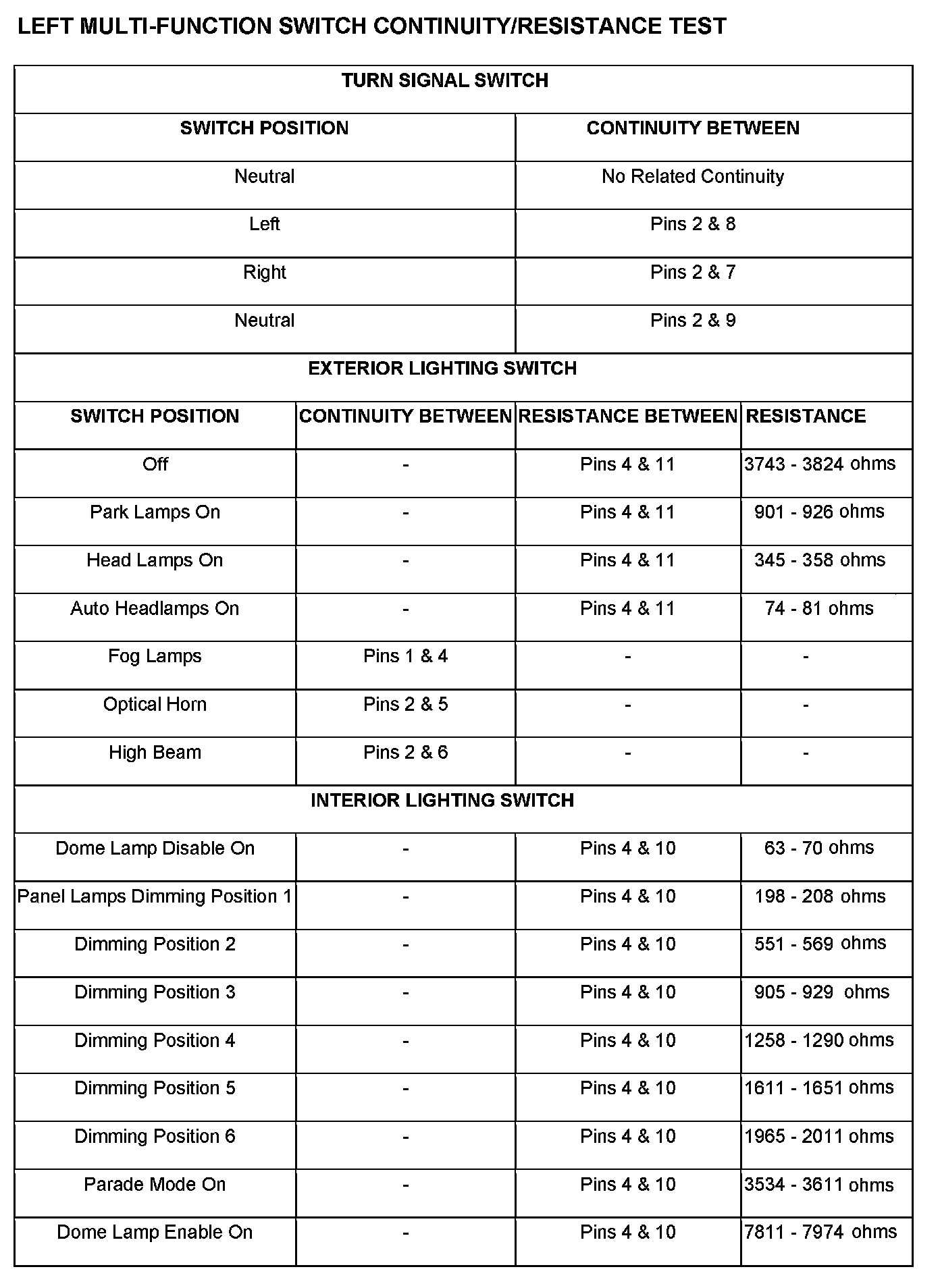

2. Using an ohmmeter, perform the continuity and resistance tests at the terminals in the left multi-function switch connector.





3. If the left multi-function switch fails any of the continuity or resistance tests, replace the switch.
