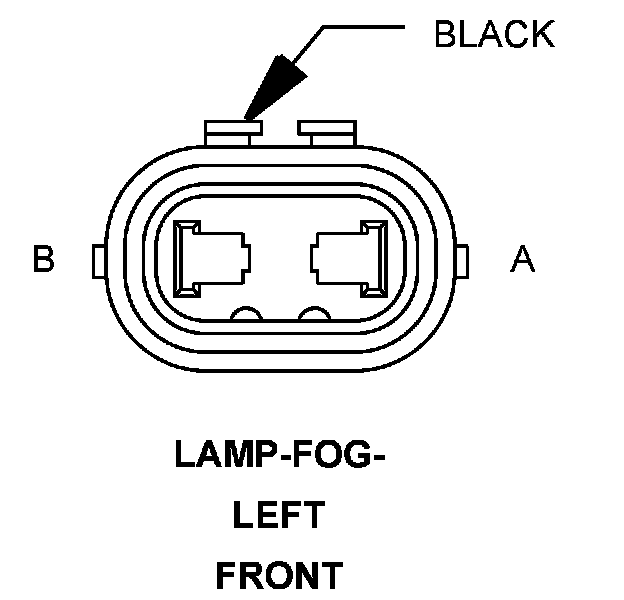

Lamp-Fog-Left Front

Component ID: 145
Component : LAMP-FOG-LEFT FRONT

Connector:
Name : LAMP-FOG-LEFT FRONT
Color : BLACK
# of pins : 2




A LEFT FRONT FOG LAMP DRIVER L89 18WT/YL
B GROUND Z349 18BK/YL

Component Location - 6

3.8L:

Component Location - 9

4.0L:
