Instrument Panel Air Outlets






INSTRUMENT PANEL AIR OUTLETS

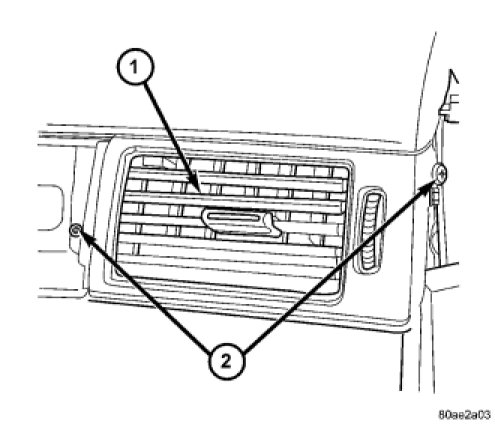

NOTE: Passenger side air outlet shown. Driver side outlet similar.




1. If servicing the right instrument panel air outlet, use a trim stick C-4755 or equivalent and gently pry the outer perimeter of the center trim panel from the right side of the instrument panel and remove the trim panel. If servicing the left instrument panel air outlet, remove the instrument panel cluster bezel.

2. Remove the end cap from the side of the instrument panel being serviced.

3. Remove the two screws (2) that secure the instrument panel air outlet (1) to the instrument panel and remove the outlet.
