Center Air Outlets

CENTER AIR OUTLETS

WARNING: Disable the airbag system before attempting any steering wheel, steering column, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to take the proper precautions could result in accidental airbag deployment and possible personal injury or death.

NOTE: The two center air outlets located above the instrument panel center bezel are serviced as an assembly.




1. Disconnect and isolate the negative battery cable.

2. Remove the center bezel from the instrument panel.

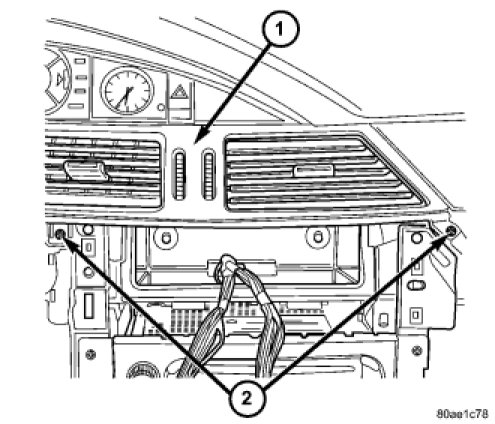

3. Remove the two screws (2) that secure the bottom of the center air outlet (1) to the instrument panel.

4. Roll the bottom of the center air outlet upward and disengage the retaining clips that secure the top of the air outlet to the instrument panel and remove the outlet.
