Removal

REMOVAL

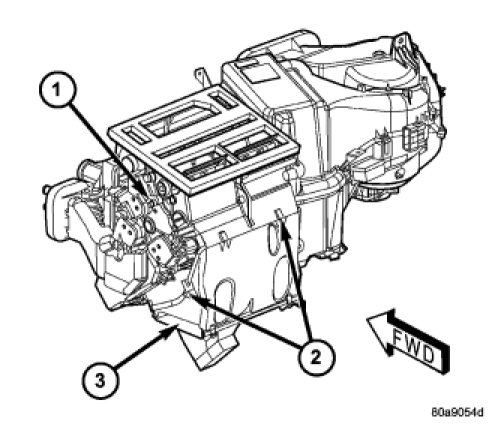

NOTE: Illustration shown with HVAC housing removed from vehicle for clarity.




1. Remove the center console assembly to gain access to the front floor distribution duct.

2. Remove the screws (2) that secure the floor distribution duct (3) to the bottom of the HVAC housing (1).

3. Pull the floor distribution duct rearward to disengage it from the bottom of the HVAC housing and remove the duct.
