Removal

REMOVAL




1. Remove the front center floor console cover.

2. Disconnect and isolate the negative battery cable.

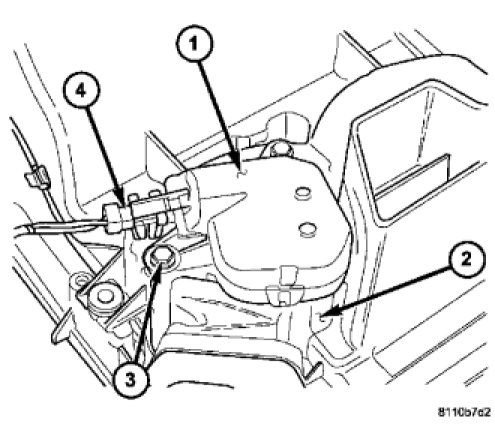

3. Disconnect the body wire harness connector (4) from the rear mode door actuator (1).

4. Remove the two screws (3) that secure the mode door actuator to the rear blower motor housing (2) and remove the actuator.
