Installation

INSTALLATION




1. Support the muffler/resonator assembly (1) under the vehicle.

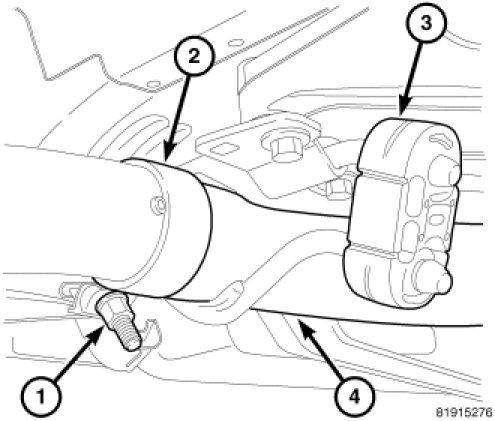

2. Install the insulators (2).




3. Position torca clamp (2) on the resonator/muffler assembly (4).
4. Tighten torca clamp nut (1) to 54 Nm (40 ft. lbs.).
5. Start the engine and inspect for exhaust leaks. Repair exhaust leaks as necessary.
6. Check the exhaust system for contact with the body panels. Make the necessary adjustments, if needed.
