Removal

REMOVAL




1. Remove the crankshaft sprocket.

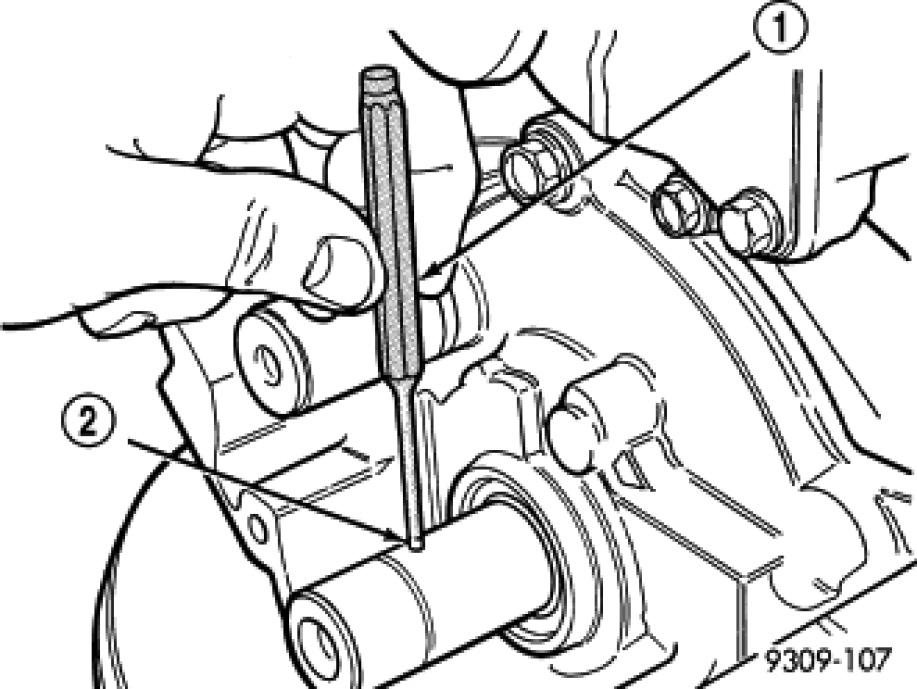

2. Tap the dowel pin (2) out of the crankshaft.

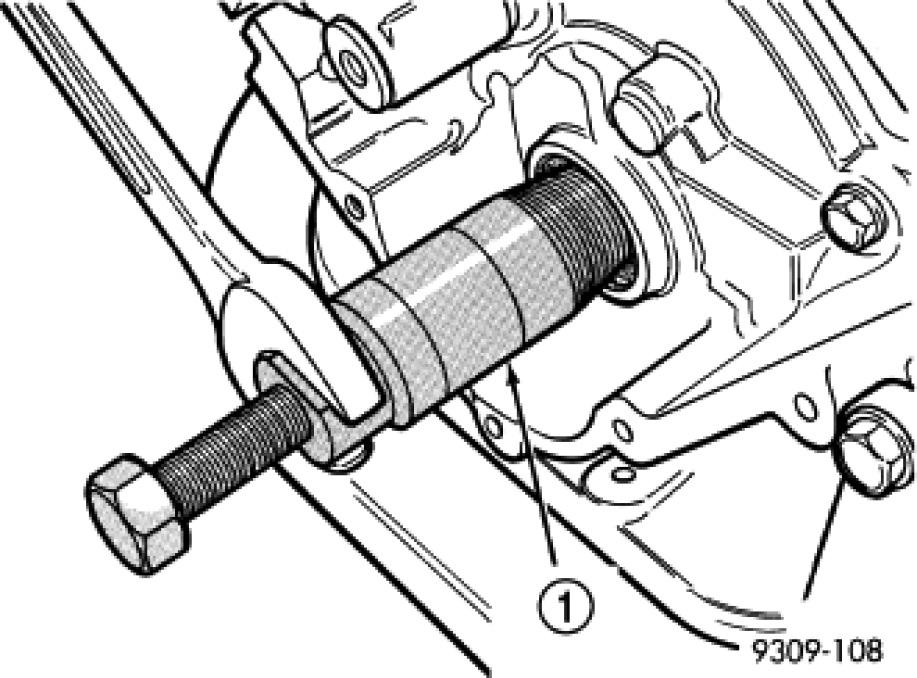

3. Remove crankshaft seal using Special Tool 6341A (1).

CAUTION: Do not nick shaft seal surface or seal bore.

4. Shaft seal lip surface must be free of varnish, dirt or nicks. Polish with 400 grit paper if necessary.
