Removal






REMOVAL




1. Remove the accessory drive belt.

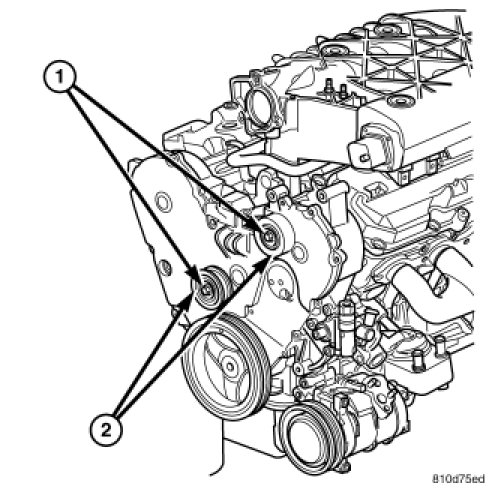

2. Remove the bolt and the upper idler pulley.
3. Remove the bolt and the lower idler pulley.
