Removal






4.0L ENGINE




1. Raise vehicle on hoist.
2. Remove the drive belt shield.
3. Remove the drive belt.

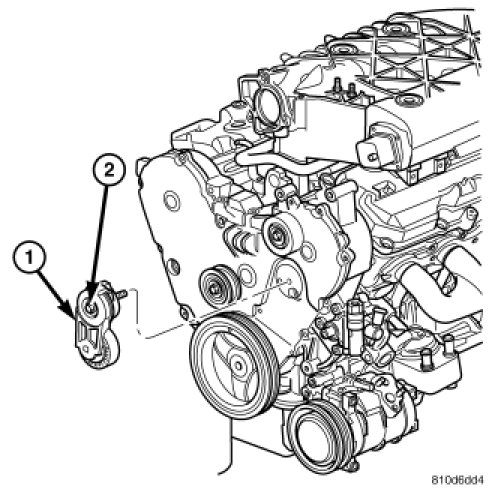

4. Remove the belt tensioner.
