Installation






3.5L ENGINE

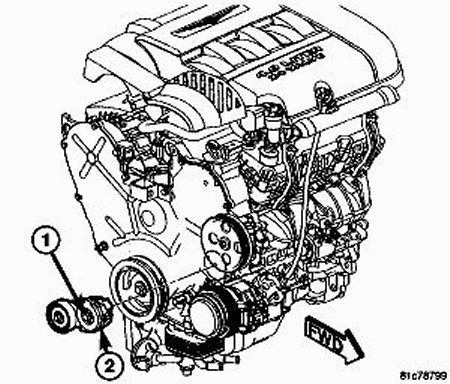

1. Install the belt tensioner and bolt. Tighten bolt to 28 Nm (250 in. lbs.).
2. Install the drive belt.
3. Install the drive belt shield.
4. Lower the vehicle.
